6300 VSquirrel Cage (IC 81W + IC 86W)Motors for power plants

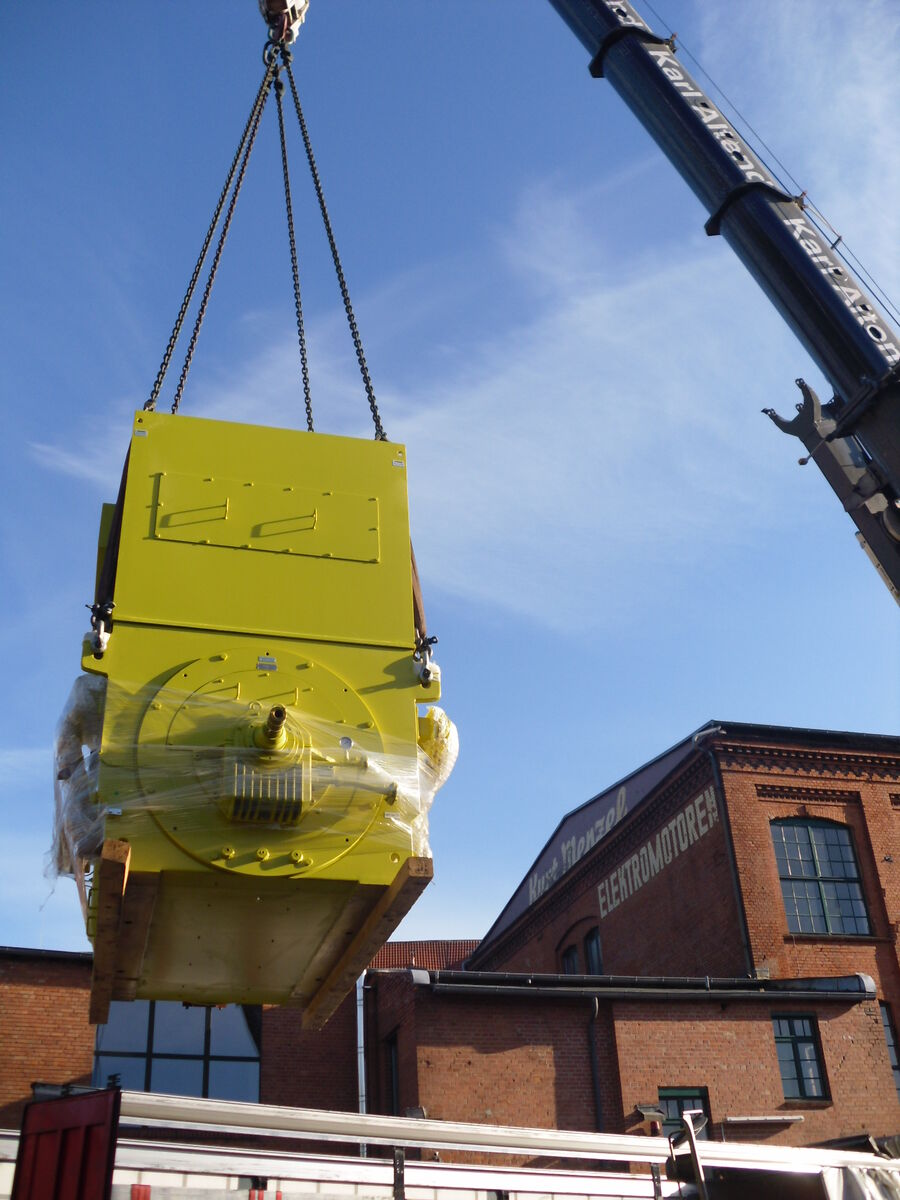

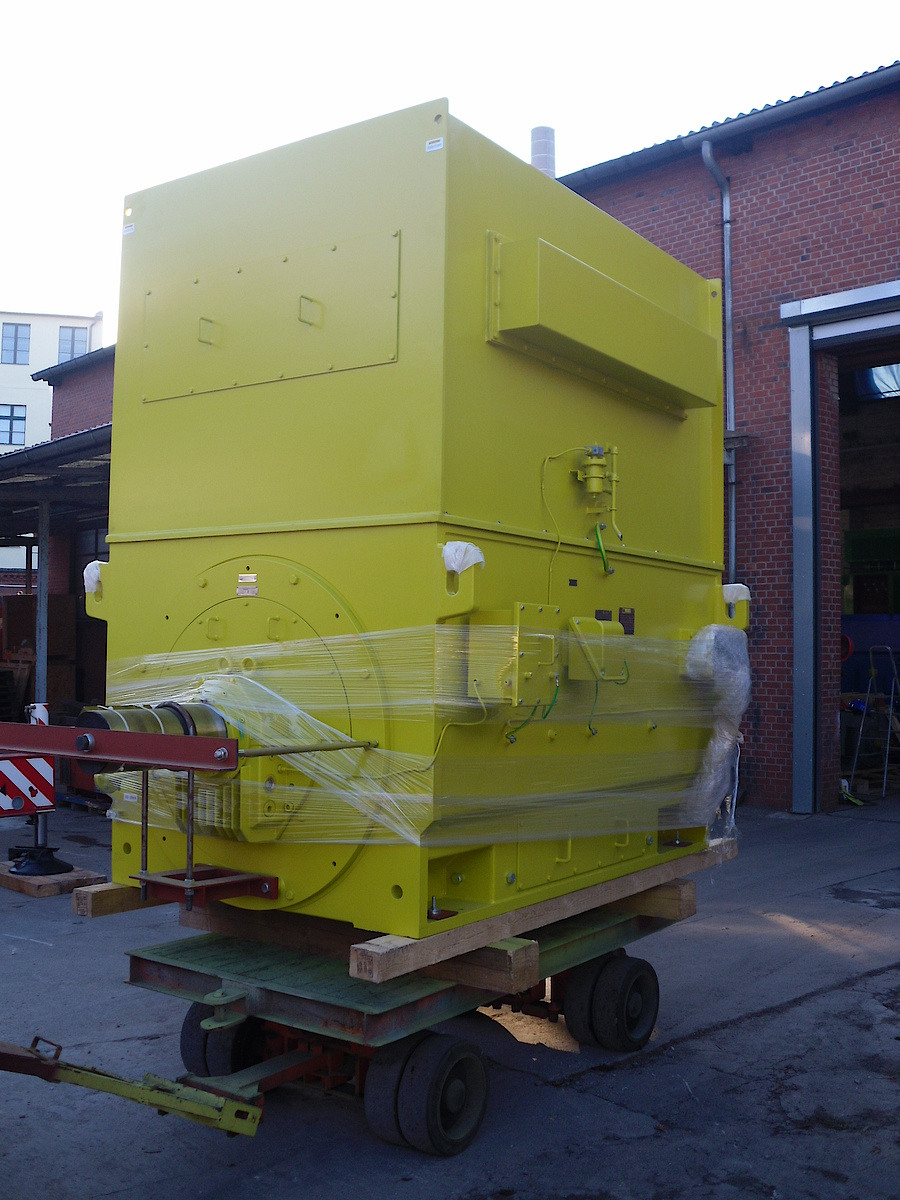

Three-phase squirrel cage motor for a power station in Romania

Customer: Romanian power station (Romania)

Menzel was able to convince the power station manager of its quality and expertise. So we won an international tender and the order of an 100% interchangeable 6300 V spare motor for an existing drive. All main dimensions, including the second shaft end, water supply, as well as the accessoires have been strictly adhered.

Technical characteristics:

  • Type: MEBKSW630-04
  • Rated Power: 7200 kW
  • Voltage: 6300 V
  • Frequency: 50 Hz
  • Poles: 4
  • Rated Speed: 1493 min-1
  • Mounting: IM 1002
  • Protection: IP 55
  • Cooling: IC 81W
  • Weight: 16500 kg
  • Pieces: 1
