6600 VSquirrel Cage (IC 01 + IC 06)Pump drives

Medium voltage motor for cooling water pump in Bangladesh

We recently delivered another large medium voltage motor to Bangladesh. The 6000 V motor is used to drive a cooling water pump in a fertilizer factory. The gas-powered fertilizer factory can produce up to 1700 tons of urea and 1000 tons of ammonia per day.

The requirements on the replaceable 10-pole pump drive were quite high. We had to comply 100% with the technical parameters and dimensions required by the customer. Even with the slightest technical or dimensional deviation, our offer would have been rejected. However, Menzel was able to meet all customer requirements for this medium voltage motor 100% and win the project together with United Brothers Corporation.

This new pump motor is a typical example of motor projects that we are implementing in cooperation with our partner United Brothers Corporation in Bangladesh. The import and trading company is our local sales partner and has specialized in the fertilizer and chemical industry.

Large medium and high voltage motors for the chemical industry

We manufacture and supply high quality, large medium and high voltage motors as squirrel cage or slip ring motors. The power spectrum starts at 250 kW up to 25 MW. The chemical industry is one of the many industrial branches that MENZEL supplies with individual motors and drive solutions worldwide. Our electric motors are typically used to drive compressors, gas and steam turbines, fans, pumps, mixers, and agitators.

MENZEL also offers a wide range of motors for hazardous areas Zone 2 (Ex ec) and Zone 22 (Ex tc). Our explosion-proof motors are characterized by a particularly robust and high-quality motor construction. They meet the highest dimensional accuracy in order to guarantee an oil-, gas- and dust-tight fit.

Being an independent, medium-sized company with our own production facilities in Germany, we are always able to respond flexibly and quickly to individual customer inquiries and requirements.

Performance data of the medium voltage pump motor

  • Type: MEBKSD500-10 three-phase squirrel cage motor
  • Pump drive for cooling water pump in fertilizer factory
  • Standard: IEC / EN 60034-1
  • Power: 1370 kW
  • Voltage: 6600 V
  • Frequency: 50 Hz
  • Number of poles: 10-pole
  • Nominal speed: 587 min-1
  • Mounting: IM B3
  • Protection class: IPW24 (weather protected open-circuit ventilation)
  • Type of cooling: IC 01
  • Weight: 8100 kg

Electric motors for large industrial pumps

Electric motors for large industrial pumps in the higher performance range are only one part of our extensive product portfolio. Since 1927 we have been manufacturing and supplying large electric motors with squirrel cage or slip ring rotors as well as DC motors for industrial plants all over the world.

MENZEL pump motors are available in all common motor cooling and protection classes for low voltage, medium and high voltage up to 25000 kW. We specialize in the production of larger industrial engines in smaller runs, especially according to customer requirements and specifications.


Medium voltage motor for cooling water pump in Bangladesh

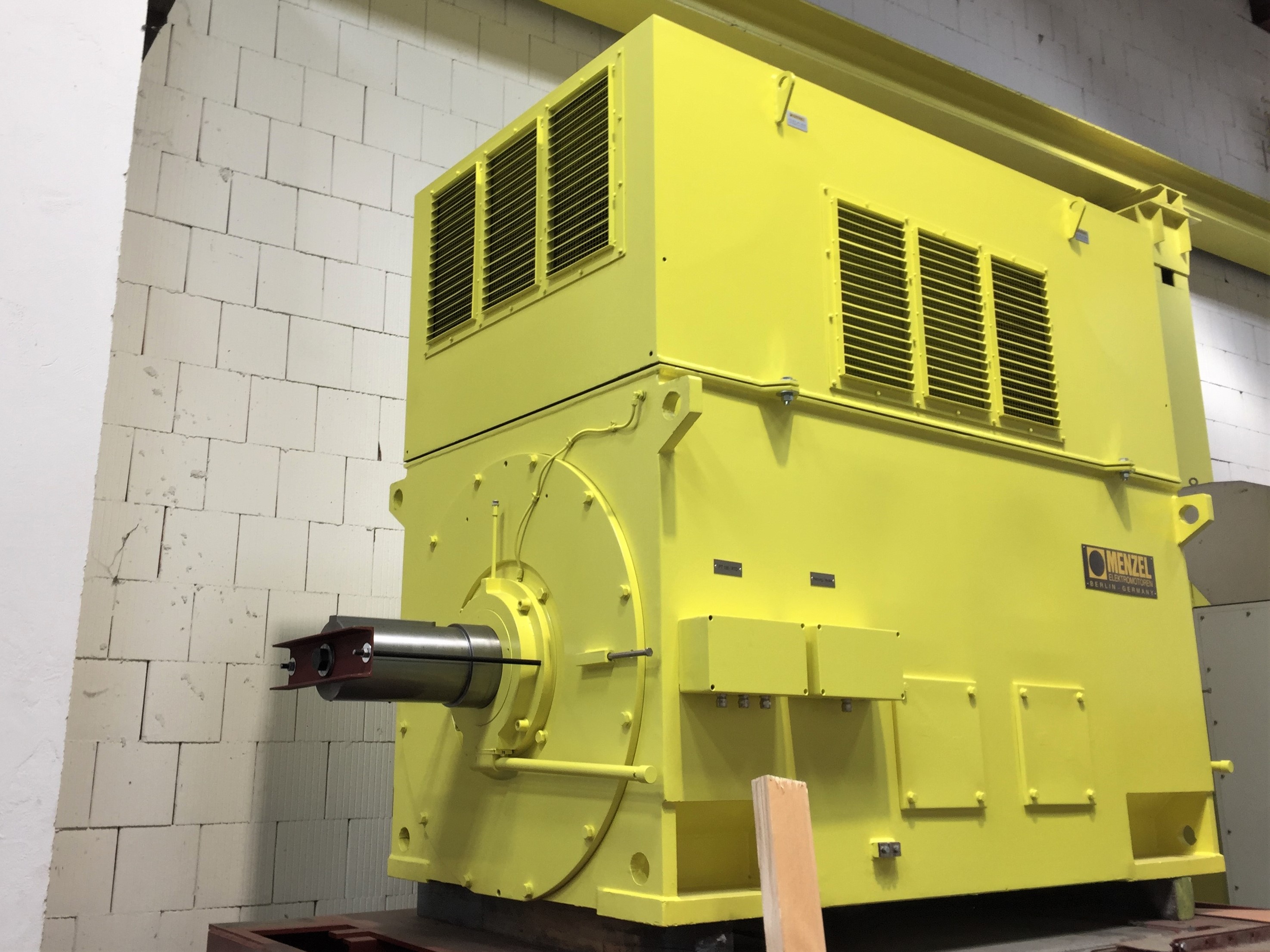

Medium voltage motor IC01 drive end

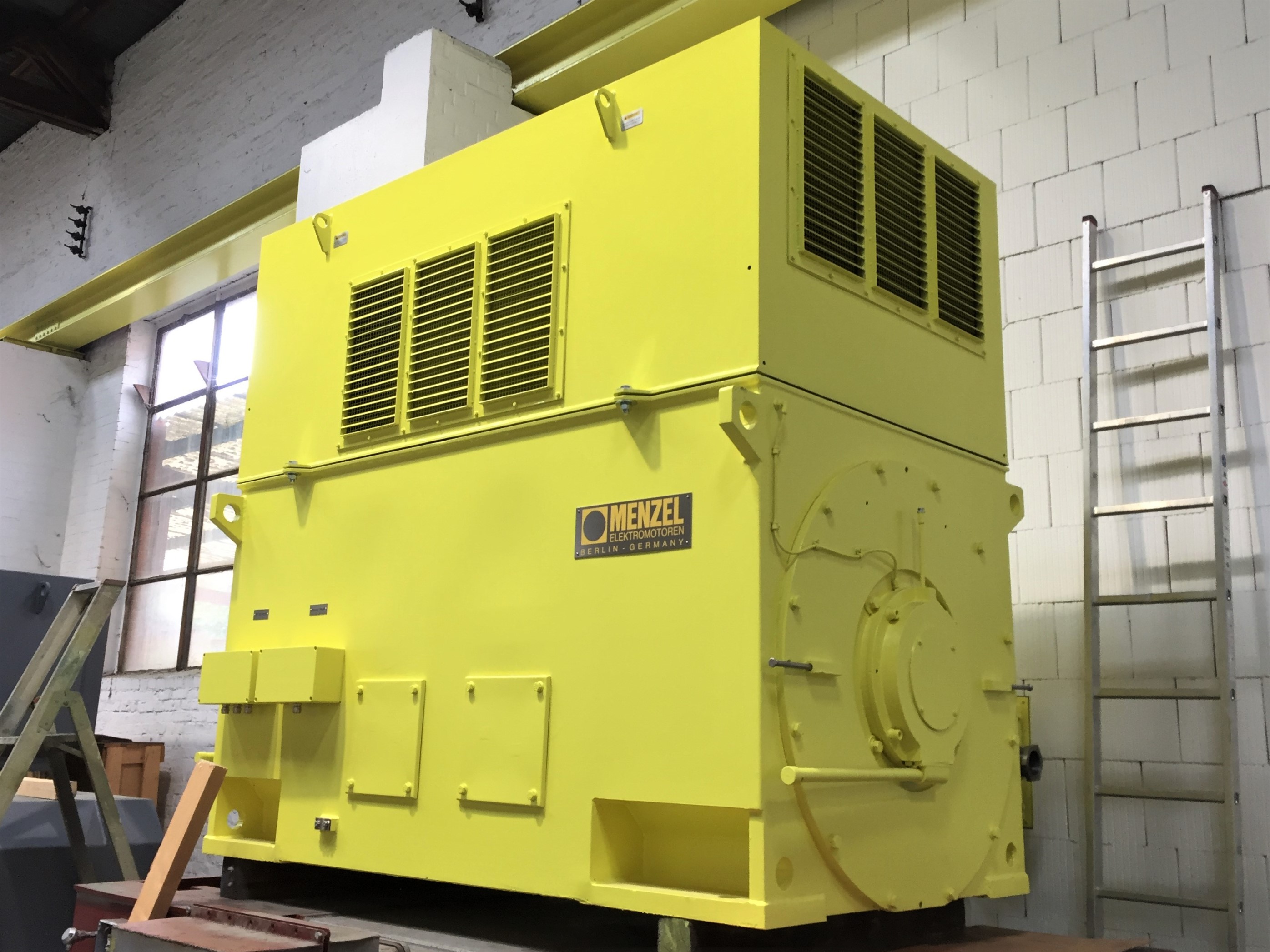

Medium voltage motor IC01 view on non-drive end
