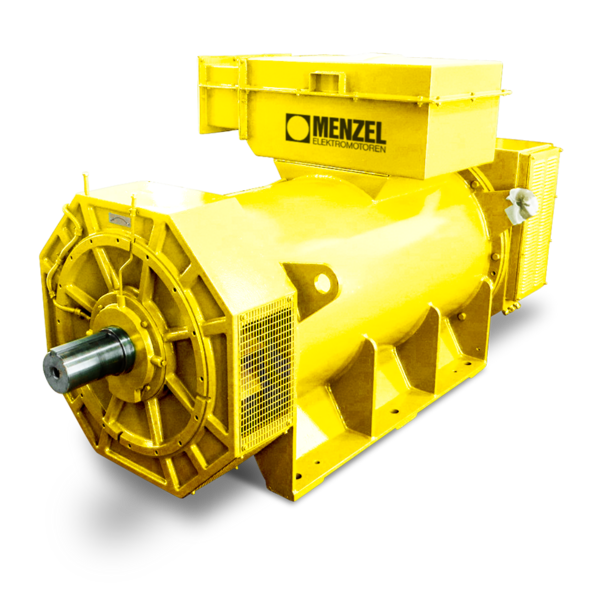

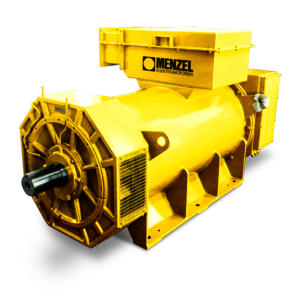

Generators - asynchronous and synchronous design

MENZEL offers three-phase asynchronous generators and synchronous generators of up to 10 MVA for various industrial applications.

With our three-phase asynchronous and synchronous generators, we guarantee the highest efficiency. We realize all special designs, whether they are horizontal or vertical. Our experienced engineers will assist you during your generator project – from the planning to the inspection – and, if necessary, also ensure its trouble-free commissioning on-site.

Over the course of our company’s long history, we have been able to supply our three-phase generators to several industrial plants, and to successfully commission them – be it in Cuba, the Middle East, or Central Europe.

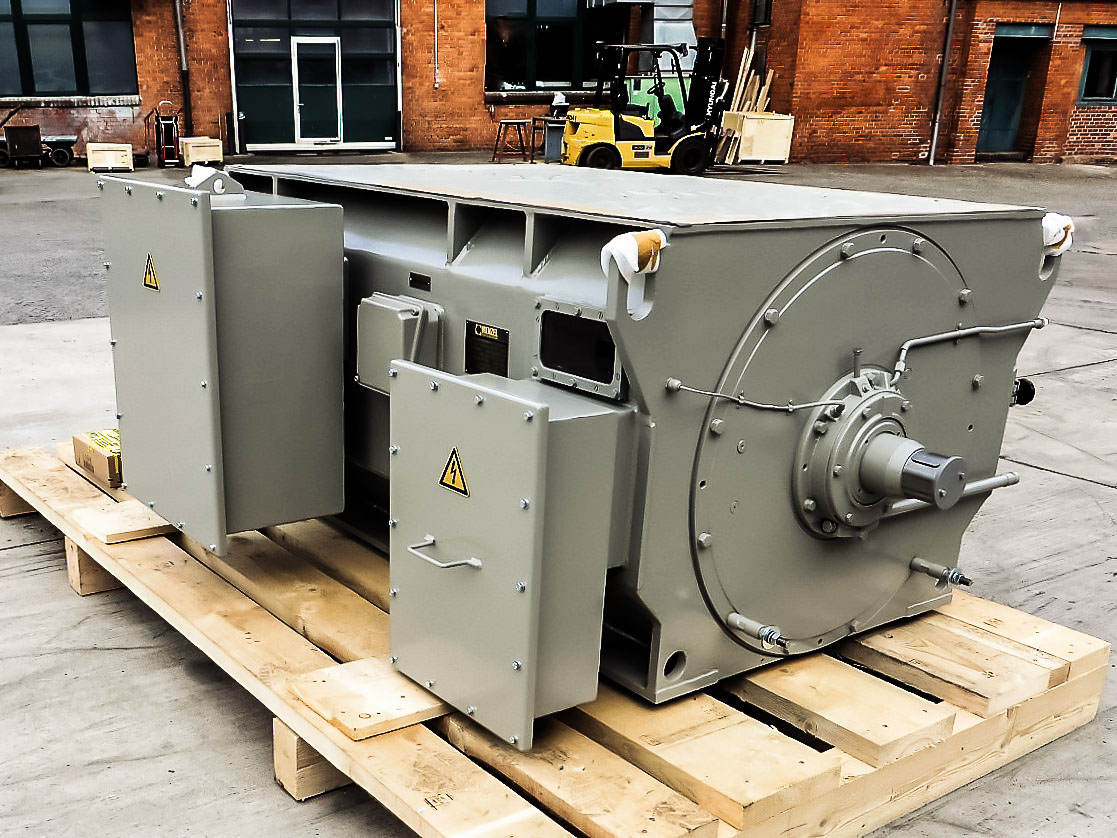

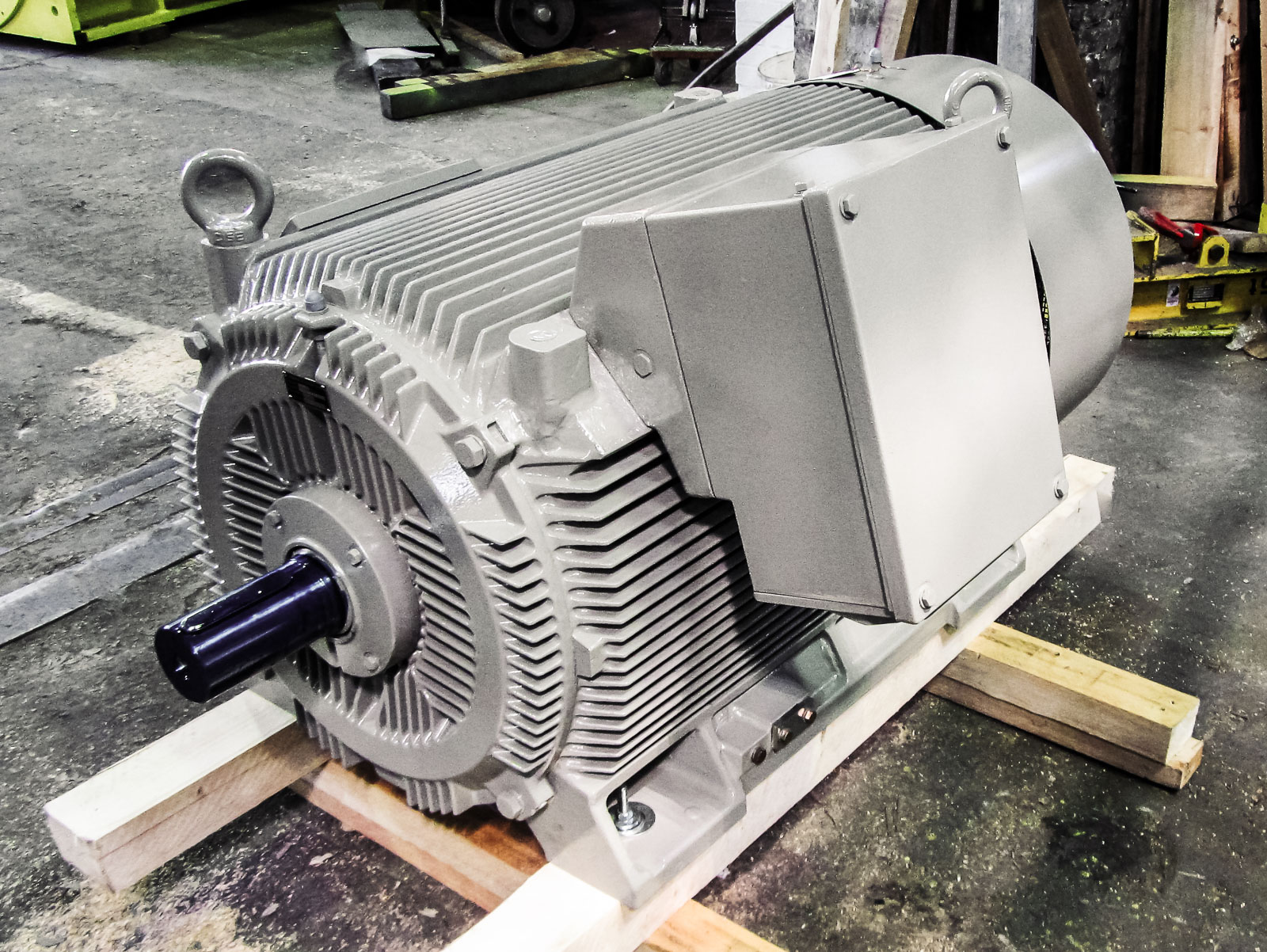

Three-phase asynchronous generators - technical data

  • Three-phase asynchronous generator with squirrel cage rotors and slip ring rotors
  • Power: from 110 kVA to 10000 kVA
  • Voltage: from 180 V to 13.8 kV
  • All common construction types
  • Insulation: Thermal class “F” (optionally “H”)
  • Thermal utilization: Thermal class “B” (optionally “F”)
  • Frequencies: 50 and 60 Hz
  • All protection classes and cooling types
  • Number of Poles: between 2 and 16

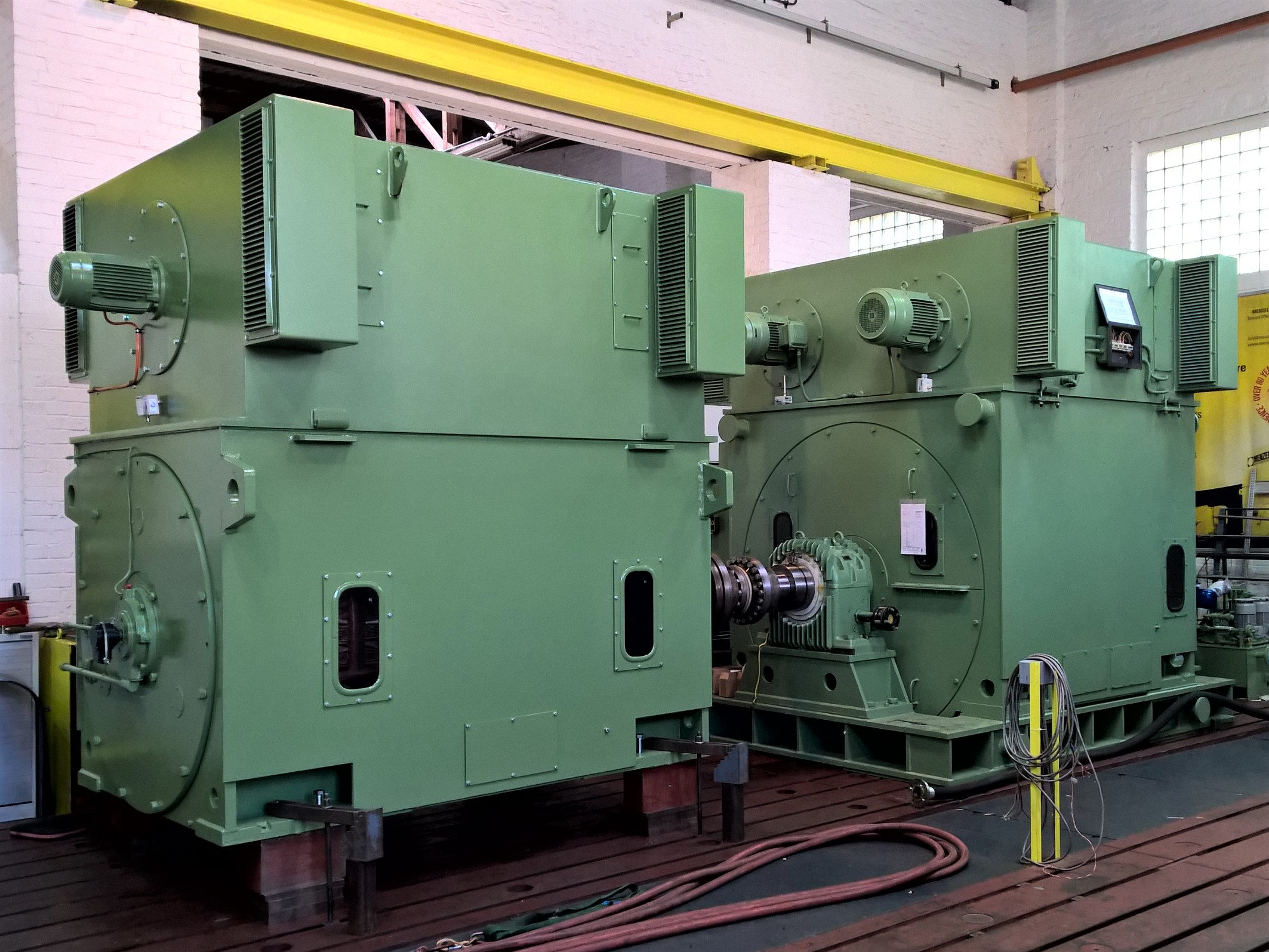

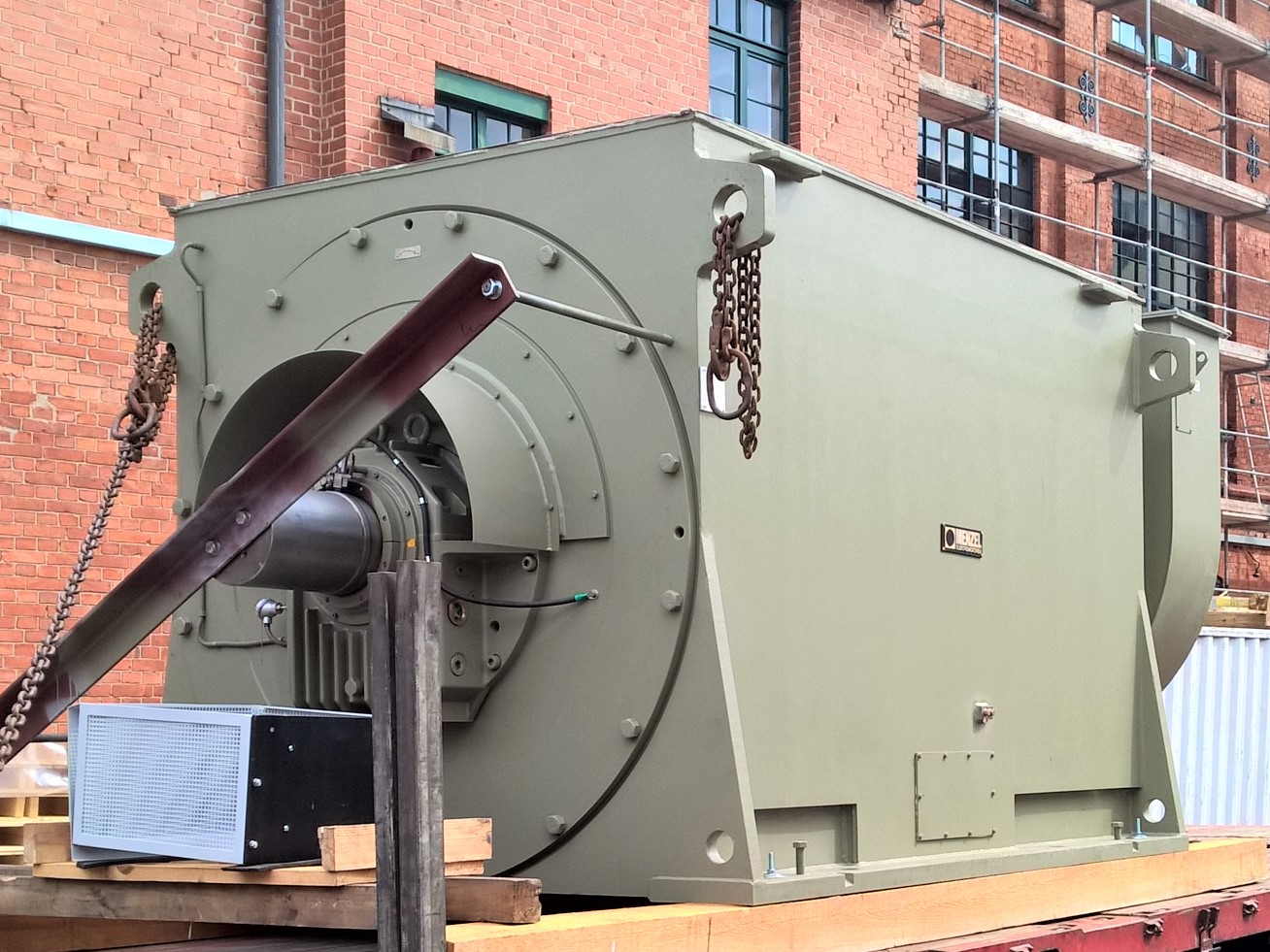

Three-phase synchronous generators - technical data

  • Three-phase asynchronous generator with salient pole rotors and non-salient pole rotors
  • Power: from 1000 kVA to 10000 kVA
  • Voltage: from 2 kV to 13.8 kV
  • All common construction types
  • Insulation: Thermal class “F” (optionally “H”)
  • Thermal utilization: Thermal class “B” (optionally “F”)
  • Frequencies: 50 to 100 Hz
  • All protection classes and cooling types
  • Number of Poles : between 4 and 24

Advantages of our three-phase generators

Icon engineering drawing

Customer-specific solutions

Icon arrows

High levels of efficiency

Icon quiet

Low noise emissions

Icon circulation

Load-independent rotation speeds

Icon plug

Network-stabilizing behavior

Icon gear-wheels

High level of reliability and ease of maintenance

MENZEL generators – Characteristics

MENZEL three-phase generators are designed and manufactured precisely for your industrial application. Typical applications are power plants, test fields and drive systems on board of rail vehicles or ships.

Depending on your industrial application, generators feed into their power grid or are connected to an existing power supply in parallel. So-called line-excited asynchronous generators require a power supply to generate energy, while capacitor-excited asynchronous generators require a parallel-connected capacitor battery in isolated operation.

A three-phase asynchronous generator is a good alternative, especially for wind and water power plants of small or medium power. MENZEL three-phase asynchronous generators are particularly economical and reliable in operation and also have a long service life, which above all saves you maintenance costs.

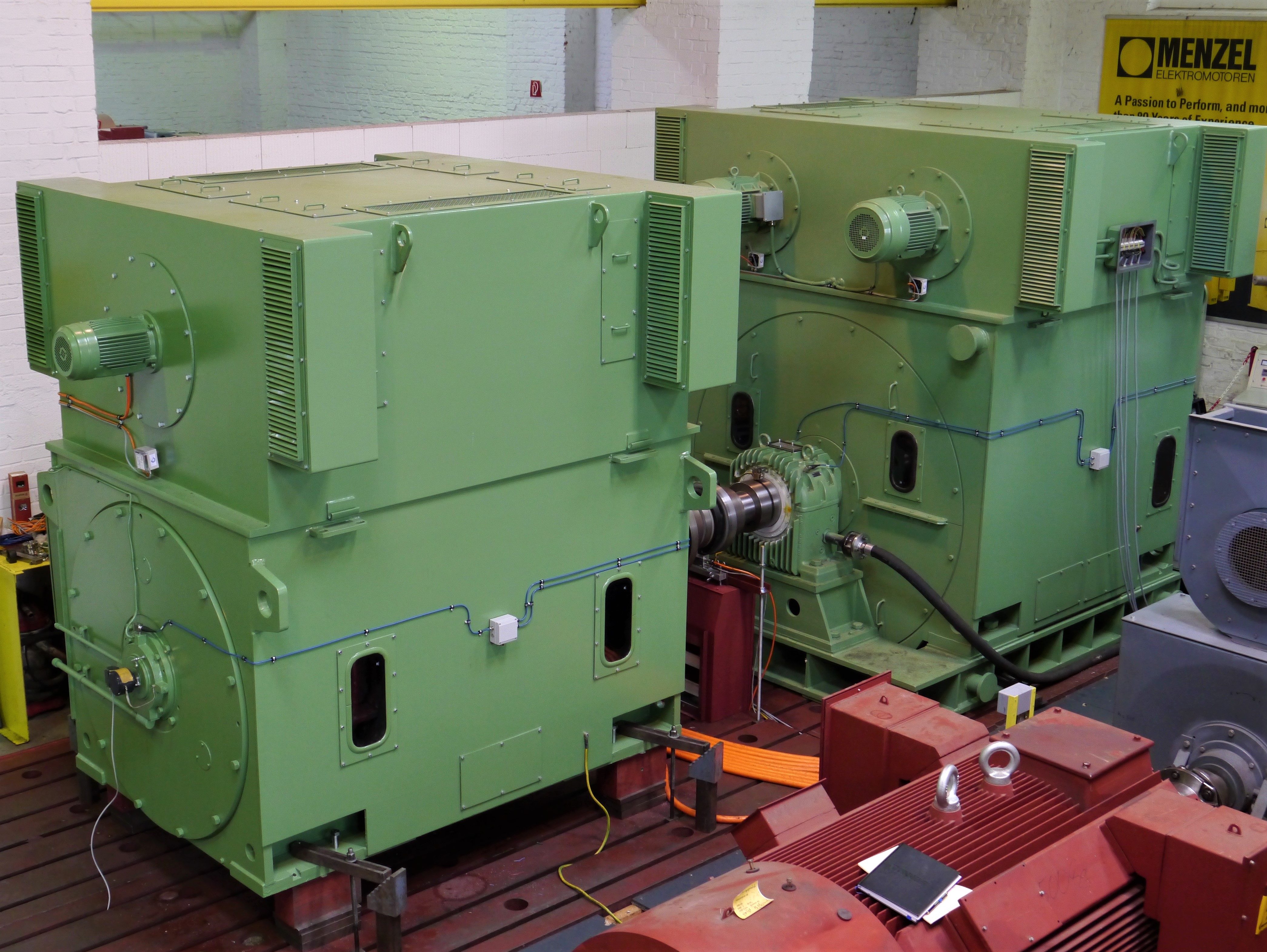

In addition to three-phase asynchronous generators, we also deliver three-phase synchronous generators. These are often driven by an asynchronous motor in converter sets.

Typical areas of application of three-phase generators

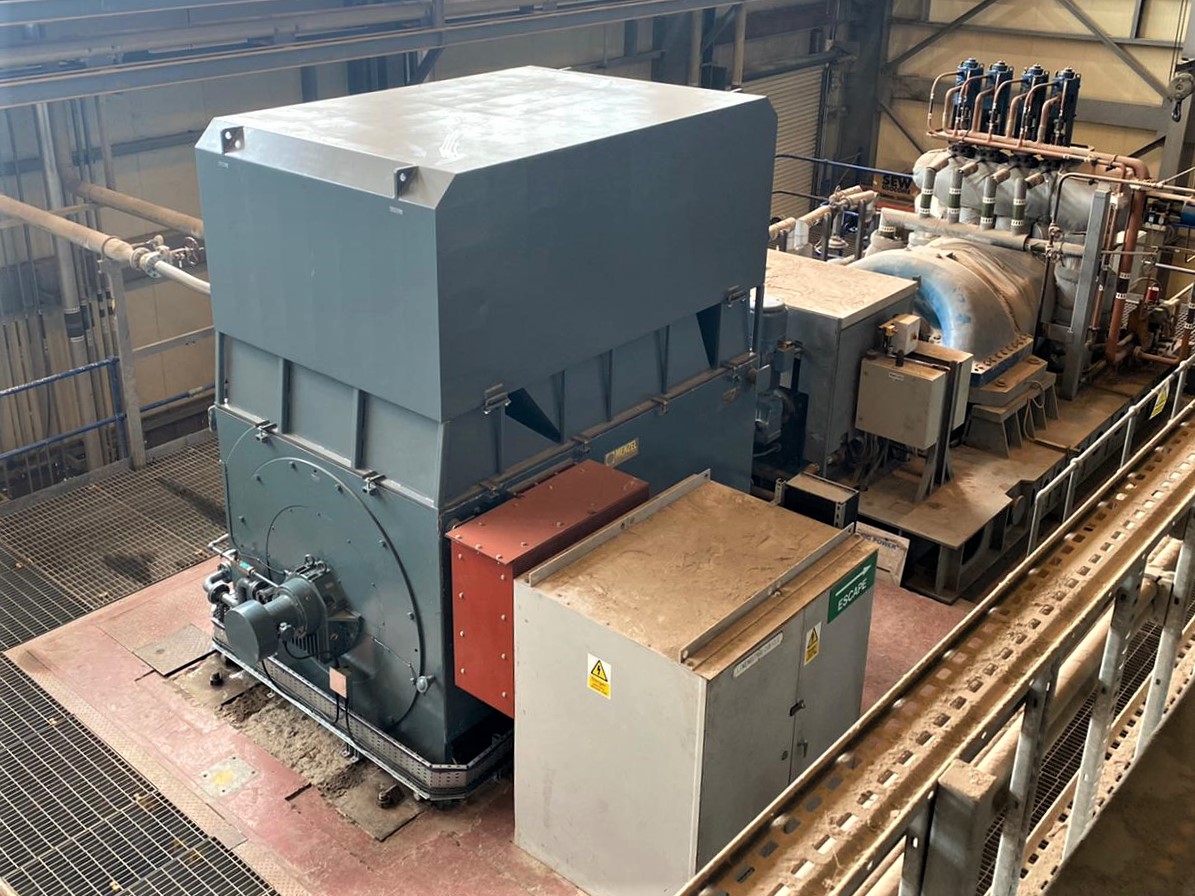

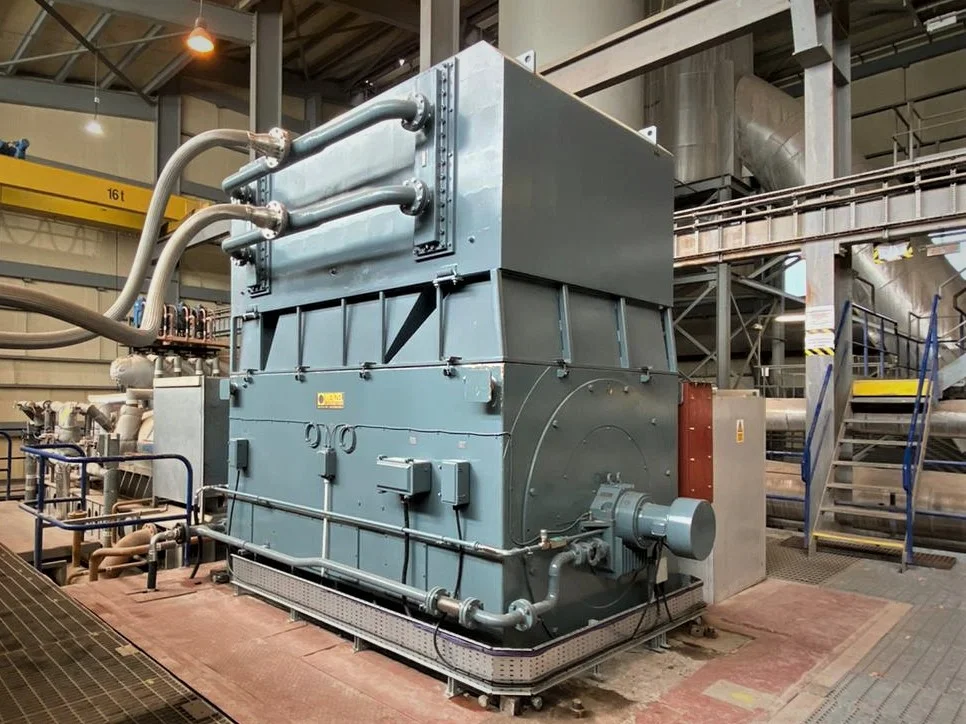

  • Thermal power plants, electricity plants (biomass, coal, water, wind power)
  • Test area
  • Rail vehicles
  • Ship drives

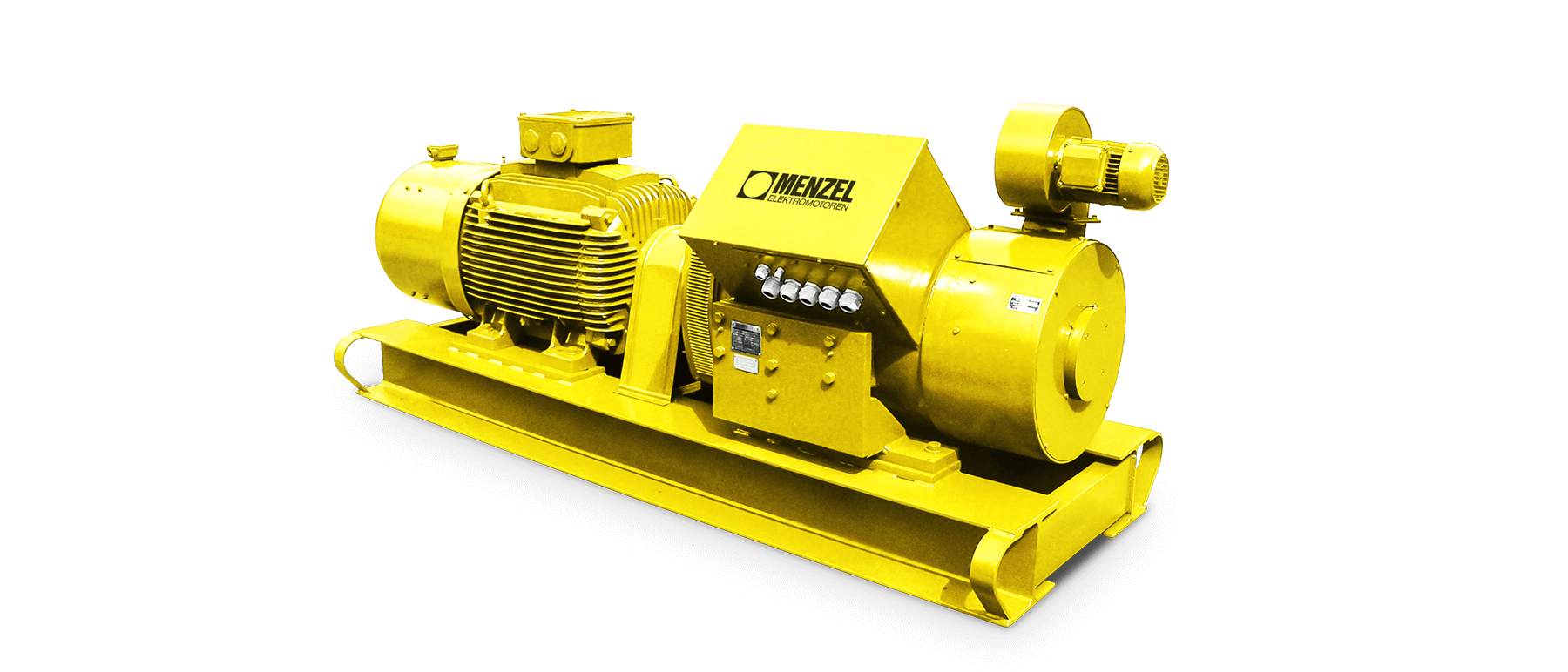

  • Motor-generator-Sets

Are you looking for a manufacturer of three-phase generators according to your specific requirements?
