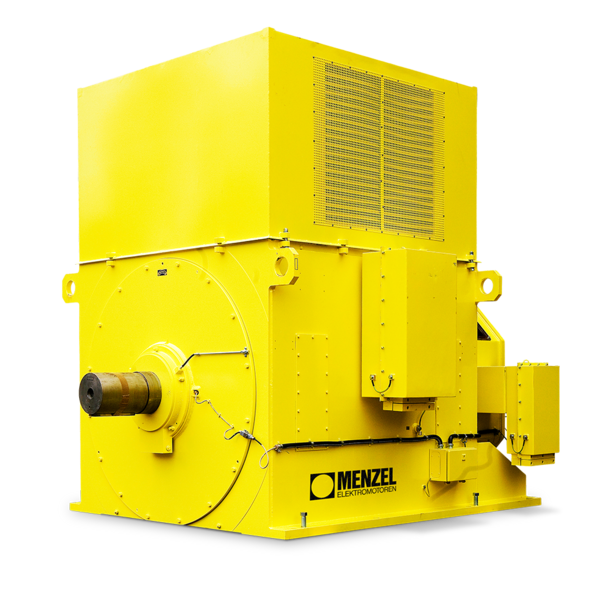

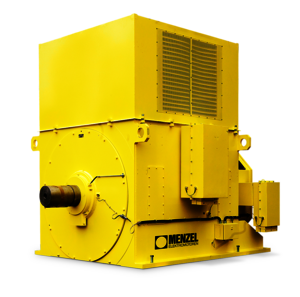

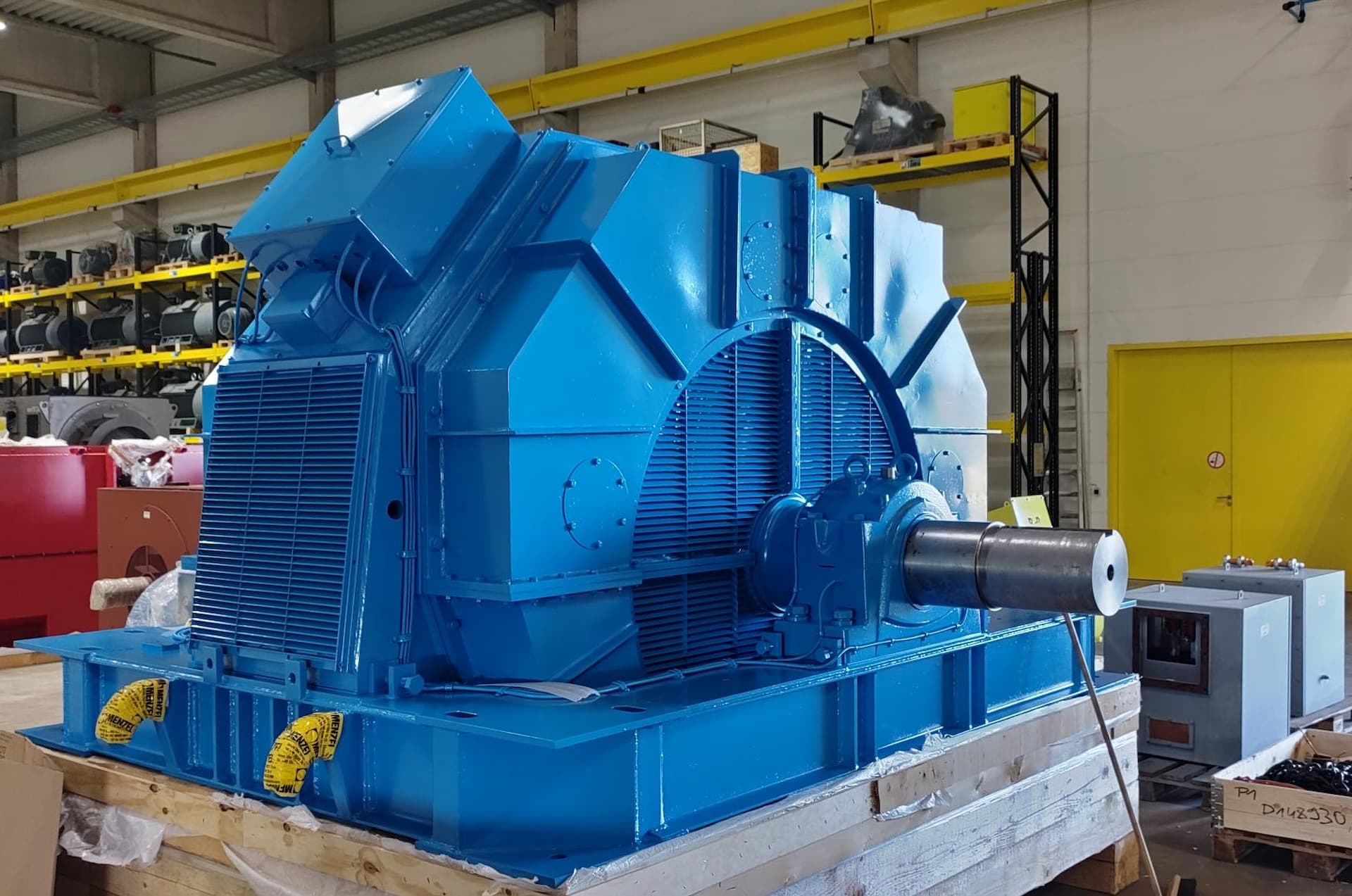

Asynchronous slip ring motor

MENZEL asynchronous slip ring motor are robust, durable, and are used in industrial plants all over the world.

MENZEL electric motors with slip ring rotors have been successfully used in large and small industrial plants worldwide since 1927. They are used anywhere where there are high starting torques and low starting currents.

MENZEL AC slip ring motors are available as open-circuit ventilated (IC 01), surface-cooled (IC 411) or pipe-cooled (IC 511) variants or as motors with air-air heat exchanger (IC 611, IC 616 and IC 666) or air-water heat exchanger (IC 81 W). A brief call with us and we can clarify which cooling class is the most appropriate for your needs. We are glad to advise.

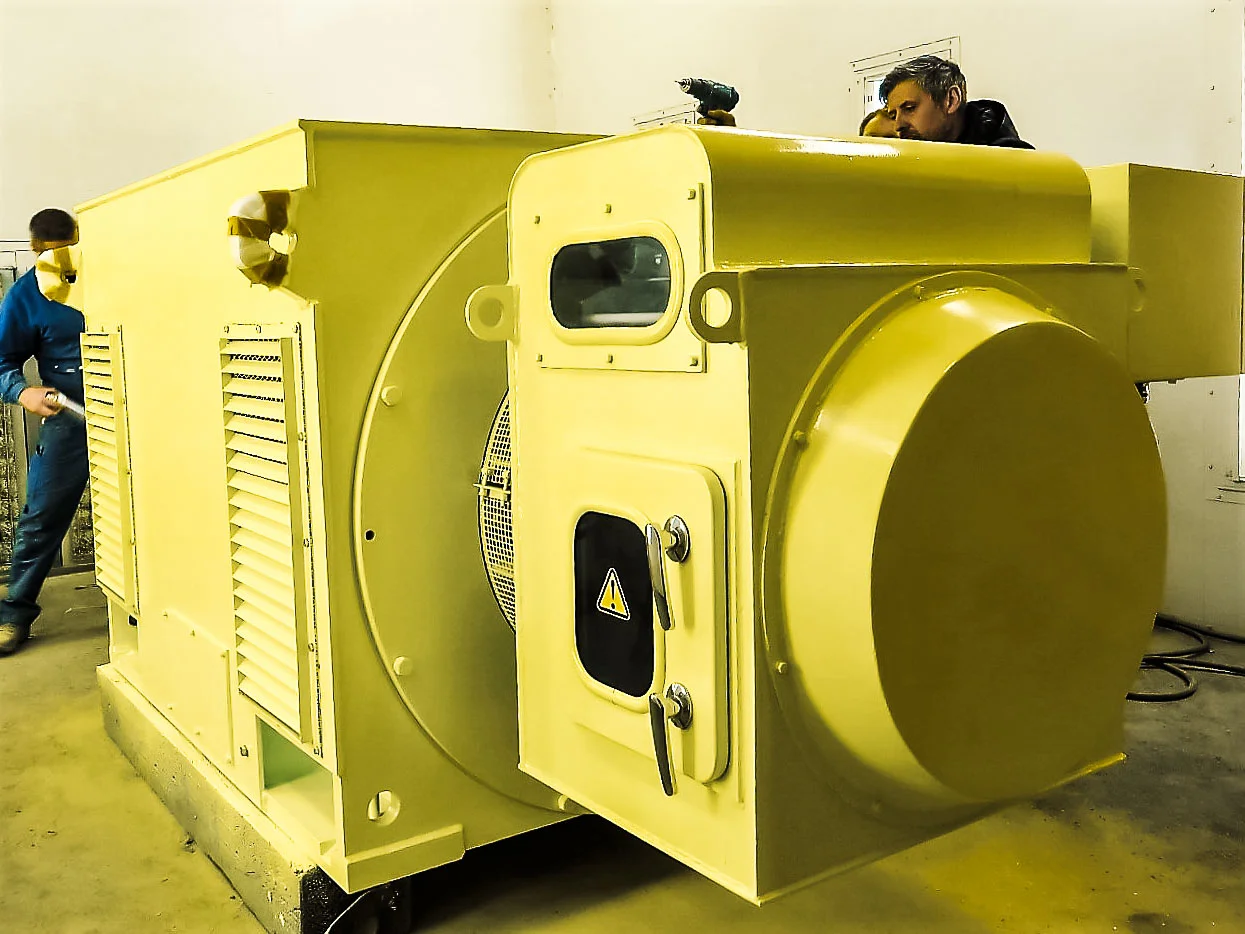

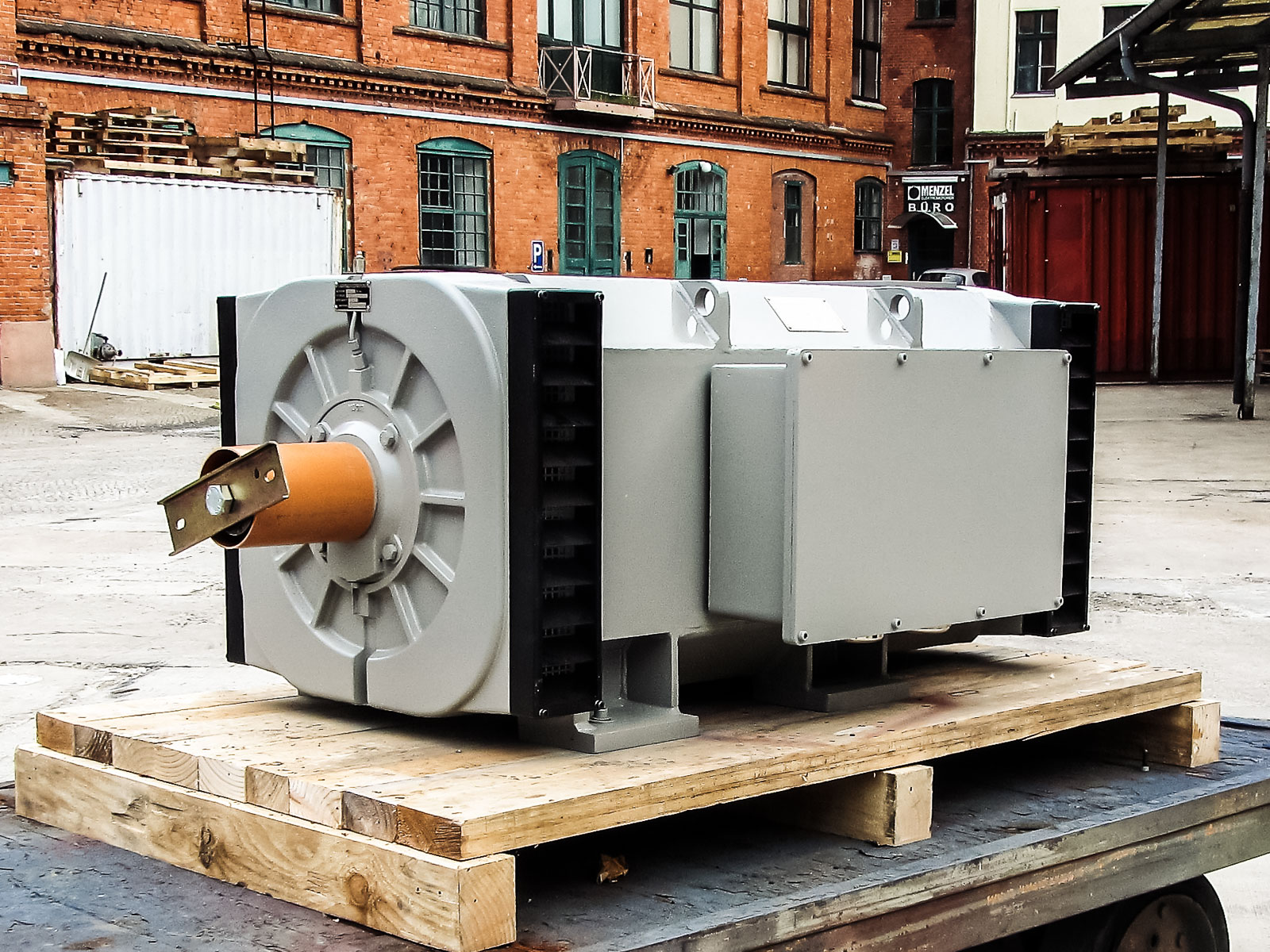

The following article primarily focuses on our modular AC slip ring motors, particularly the open-circuit ventilated IC 01 motors in our MENZEL MEBSSD series.

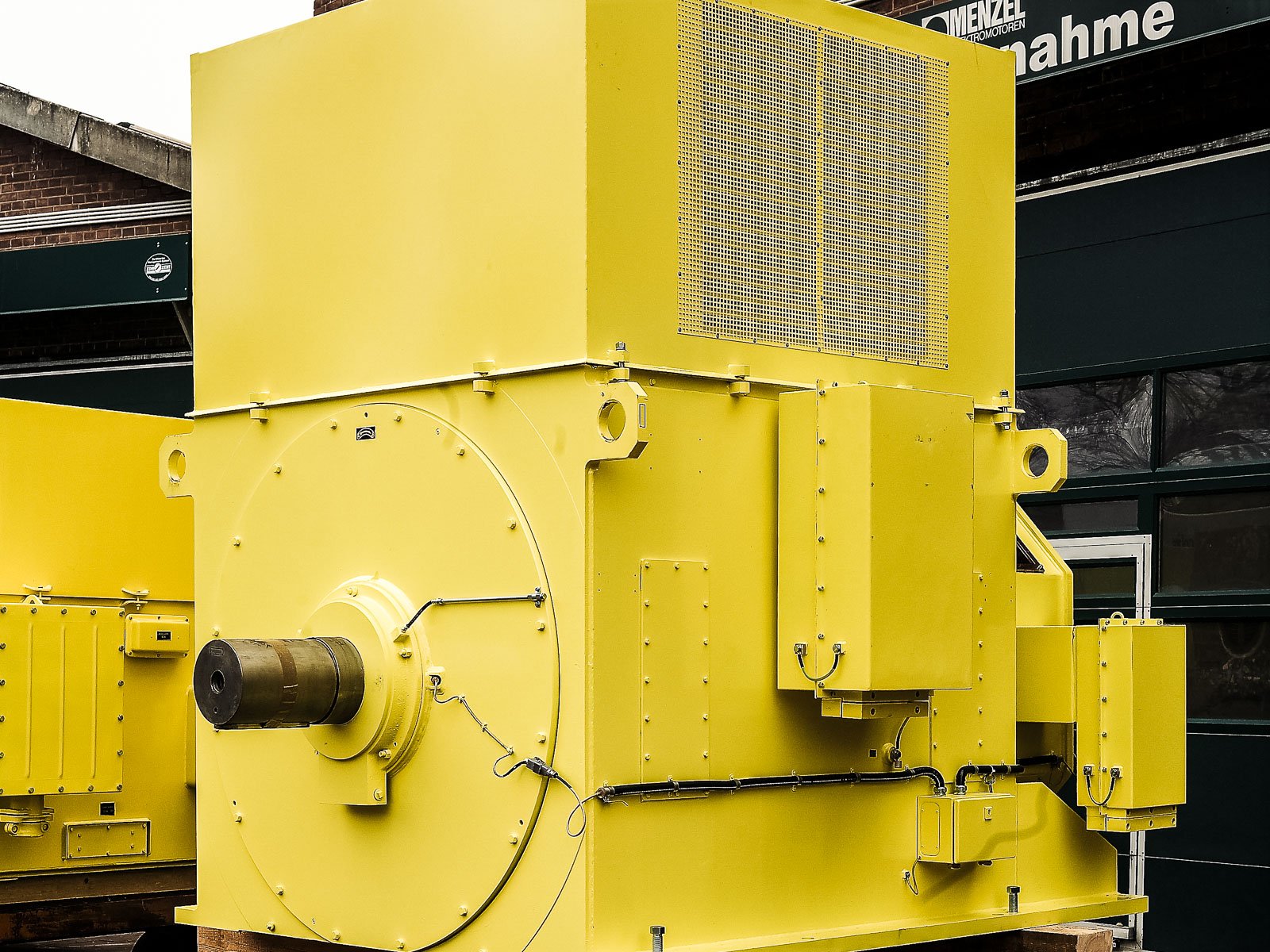

Standard design of IC 01 asynchronous slip ring motors

  • Construction types: IM B3, V1
  • Protection classes: IP23, IPW24, WBII
  • Voltage: from 230 V to 13,800 V
  • Shaft height: from 355 to 900
  • Terminal box: right or left, rotatable by 4 x 90°
  • Motor housing: of welded steel with integrated footplates
  • Thermal utilization: F/B

MENZEL also delivers tailored special designs of open-circuit slip ring motors.

The advantages of AC slip ring motors electric motors in the IC 01 cooling class

Icon save monney

High level of efficiency and extremely low operating costs

Icon arrows vertical

Compact design with small dimensions

Icon paper airplane

Low weight

Icon motor bearing

Reliable and durable bearing design

Icon circulation

Reliability and long product life

Icon arrows

High load-bearing capacity

Icon engineering drawing

Customer-specific special designs

Modular AC slip ring motors – characteristics

MENZEL open-circuit electric motors with slip ring rotor have a modular structure. These are in the MENZEL MEBSSD series. The modular design allows for a variety of cooling, protection, and mounting types, whilst the basic design of the motors remains the same. This saves costs during manufacture, which ultimately has a positive effect on the motor price. In addition, we can adapt the AC slip ring motors to your individual circumstances at any time. The modular design guarantees you complete flexibility in using these motors.

As is the case with the modular slip ring motors in the MENZEL MEBSSL and MEBSSW series, our open-circuit ventilated MEBSSD motors are always in demand where high starting or breakaway torques have to be realized. This is, for example, the case with mill or shredder drives.

Available voltage ratings of AC slip ring motors (IC 01)

In addition, we can realize all special voltages and deviating voltage tolerances on request.

Nominal voltage at 50 Hz

  • Low voltage: 220 V, 380 V /400 V, 500 V, 690 V
  • Medium and high voltage: 3.000 V, 3.300 V, 5.000 V, 5.500 V/ 6.000 V, 6.300 V, 6.600 V, 10.000 V, 10.500 V, 11.000 V

Nominal voltage at 60 Hz

  • Low voltage: 380 V, 400 V, 440 V, 480 V, 500 V, 525 V, 575 V, 690 V
  • Medium and high voltage: 2.300 V, 4.160 V, 6.000 V, 6.600 V, 7.200 V, 11.000 V, 13.200 V, 13.800 V

Typical applications of slip ring motors in the IC 01 cooling class

Typical areas of use:

  • Process industry
  • Power plants
  • Paper industry
  • Steel industry
  • Cement industry
  • Raw material extraction and materials handling

Electric motors with slip ring rotors in the IC 01 cooling class are, for example, suitable as:

  • Compressor and compactor drives
  • Fan drives
  • Conveyor drives
  • Crane drives
  • Shredder drive
  • Mill drives

Open circuit-cooled electric motors - the IC 01 cooling type principle

Open-circuit cooled electric motors with slip ring rotor in the IC 01 cooling class are also designated as internal self-cooling motors. The IC 01 cooling class is a cooler where the air directly flows through the interior of the machine as a coolant. The heat generated in the motor (stator and rotor) is blown through the motor by a fan that is mounted on the rotor. This fan draws the ambient air through the motor in practical terms and discharges the heat into the atmosphere.

Special designs that deviate, such as with regard to speed control, forced ventilation, or pipe connection with motors that run particularly slowly, can be delivered as a special design at any time.

Open circuit cooling (IC 01) of an electric motor is considerably more intensive than surface cooling (IC 411), e.g., via cooling fins. Open circuit-cooled motors can also be made smaller as less material is required in their construction. They are characterized by their compact design and comparatively low weight. As ambient air is the only coolant, open circuit-cooled electric motors are primarily suitable for use in zones that are free of dust, dirt, and water.

Are you looking for asynchronous slip ring motors for heavy-duty industrial applications? Send us your request and we'll make you an attractive and tailored offer.
