6600 VSlip ring (IC 611 + IC 616 + IC 666)Mill drives

Slip-ring motor for cement mill in IM 1101 design

Menzel manufactured three slip ring motors as mill drives for a long-standing customer. They are going to be used in his new cement plant in the Middle East. The new medium voltage motors supplied here belong to MENZEL's standard products. MENZEL has been supplying the world's largest cement manufacturers for many years and offers a wide range of high, medium and low voltage motors.

Rather unusual was the IM 1101 (IMB20) design of the largest of the three motors. Namely, the 2000 kW motor with its total weight of 14300 kg is to be suspended in a kind of trough. Extra large side mounts on the welded steel housing were provided for this purpose. The other two mill drives weld steel housings, which are not quite as heavy, were manufactured in the foot-mounted design IM 1001 (IM B3).

IC611 - CACA - Air-Air cooling

All three motors are of the IC611 - CACA - air-air cooling with integral fan on motor's shaft inside stator and heat exchanger with open external circuit with fan on motor's shaft.

Electric motors in cement production plants are exposed to extreme conditions caused, for example, by the large amount of dust present, but also by the high temperatures with strong temperature fluctuations. To prevent dust and dirt from entering the motor, closed cooling systems in the form of an CACA air-to-air cooler are used. And, since the cooling and motor housing are separated from each other, installation and maintenance of these slip ring motors is particularly easy.

Performance data of the two IM B3 slip ring induction motors

  • Menzel motor type: MEBSSL400-08
  • Motor standard: IEC / EN 60034-1
  • Nominal power: 315 kW
  • Nominal voltage: 6600 V (6.6 kV)
  • Nominal frequency: 50 Hz
  • Number of poles: 8 poles
  • Nominal speed:  740 min-1
  • Design: IM B3
  • Frame Size / Shaft height: 400 mm
  • Degree of protection: IP 55
  • Cooling type: IC 611 (CACA - Air-Air cooling)
  • Weight: 4280 kg


Performance data of the IM 1101 slip ring induction motor

  • Menzel motor type: MEBSSL630-06
  • Motor standard: IEC / EN 60034-1
  • Nominal power: 2000 kW
  • Nominal voltage: 6600 V (6.6 kV)
  • Nominal frequency: 50 Hz
  • Number of poles: 6 poles
  • Nominal speed:  993 min-1
  • Design: IM 1101 (IMB20)
  • Frame Size: 630 mm
  • Degree of protection: IP 55
  • Cooling type: IC 611 (CACA - Air-Air cooling)
  • Weight: 14300 kg

The right motor for the cement industry

Our motivation is to always supply the right motor for our customers. This is also appreciated by our worldwide customers in the cement industry - whether for new or existing plants. Typical applications include conveyors, blowers, crushers, mills and grinding plants.

MENZEL slip ring motors with air-air cooling are called MEBSSL series. They set technical standards with regard to performance, cost-effectiveness, and reliability. They are easy to maintain, have a robust design, and also have a long service life due to the inner slip ring chamber.

Searching motors for your cement mill in IM 1101 mounting or others?Send us your enquiry today!


Slip-ring motor for cement mill in IM 1101 design

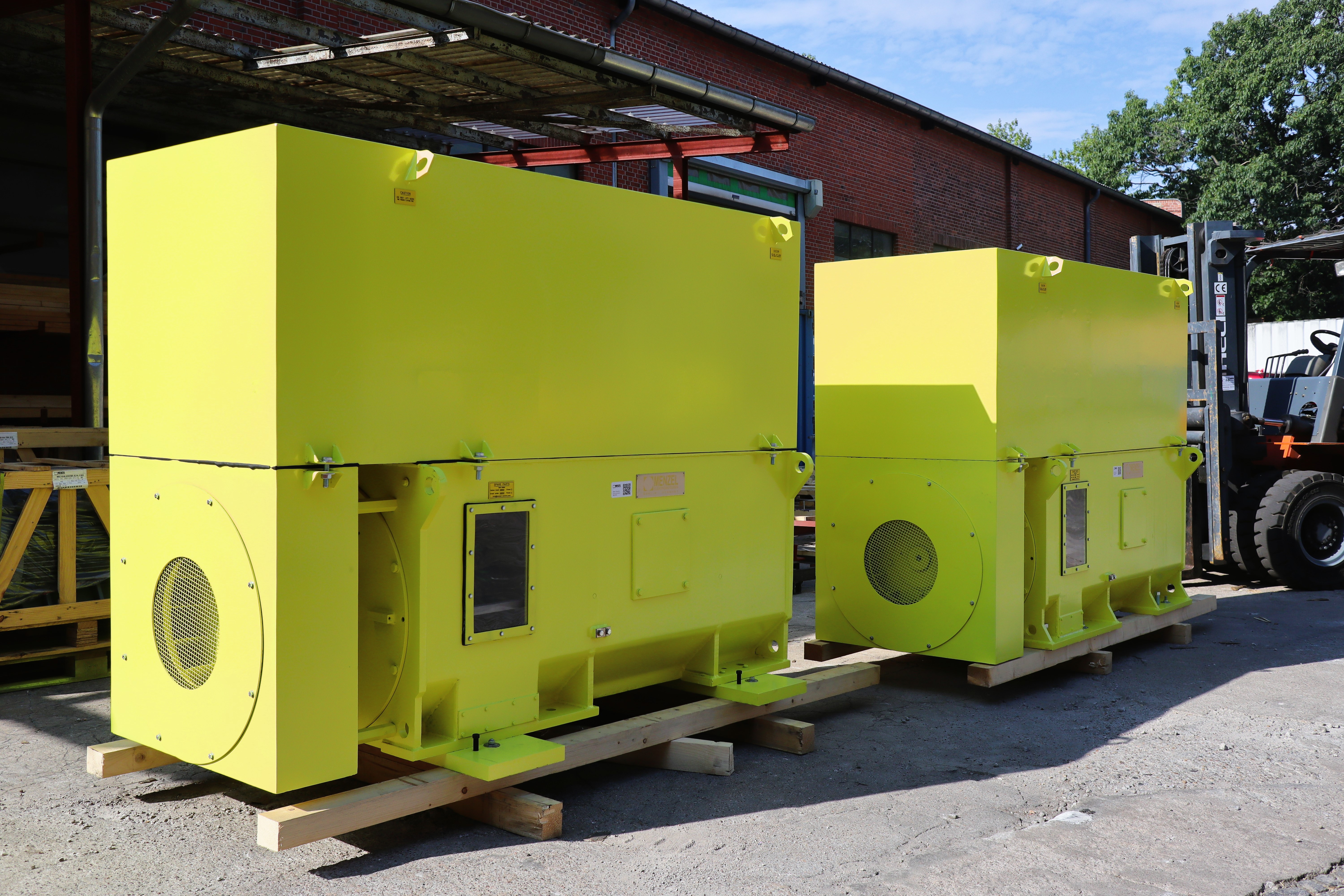

Two slip ring motors with CACA Air-Air cooling

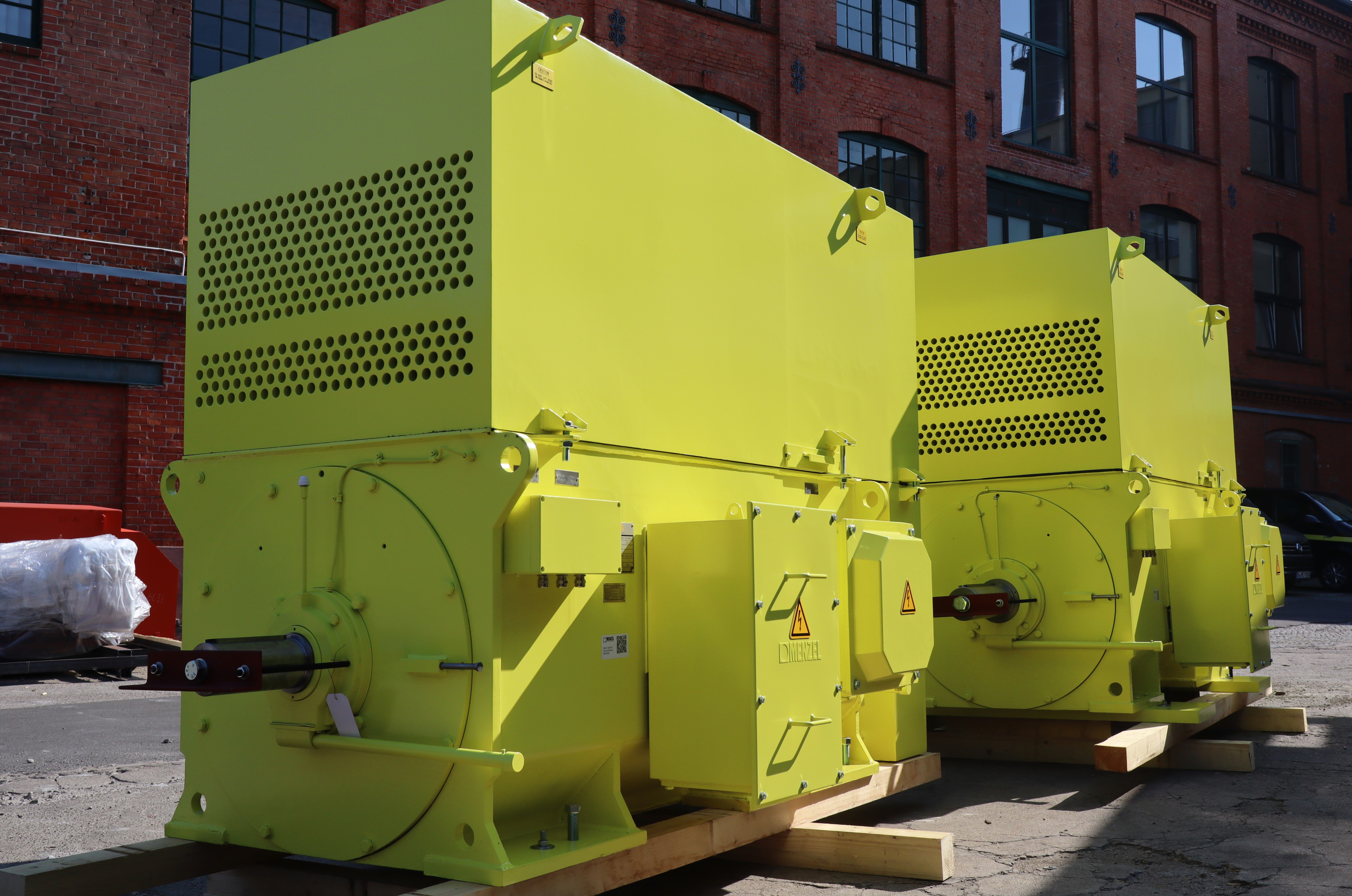

Two 6600V cement mill motors with CACA cooling
