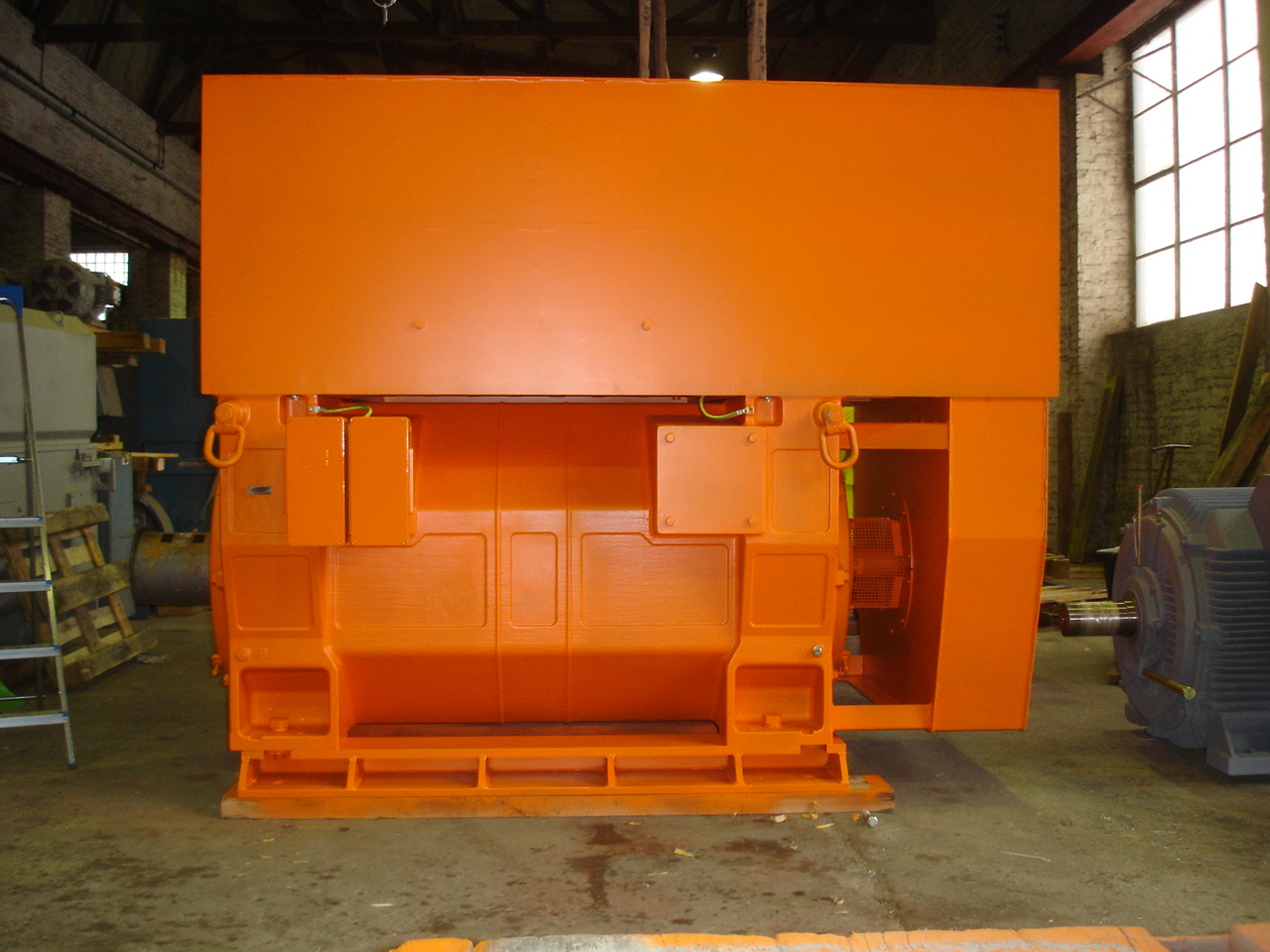

Three-phase squirrel cage motor for a power station in Germany

Customer: Vattenfall Europe Generation AG (Germany)

Menzel was entrusted with the export of a dimensionally interchangeable motor for a german power station. Due to the modern and compact construction of the current Menzel series, the new Menzel motor is significantly smaller than the old one. A dimensional modification colud be done very easily by a mounting frame.

Technical characteristics:

  • Type: Three-phase squirrel cage motor MEBKGL500-630-06
  • Rated Power: 1450 kW
  • Voltage:10000 V
  • Frequency: 50 Hz
  • Poles: 6
  • Rated Speed: 992 min-1
  • Mounting: IM B3
  • Protection: IP 55
  • Cooling: IC 611
  • Weight: 7,000 kg
  • Pieces: 1
