Main mill drive for a cement plant

Customer: Cement plant

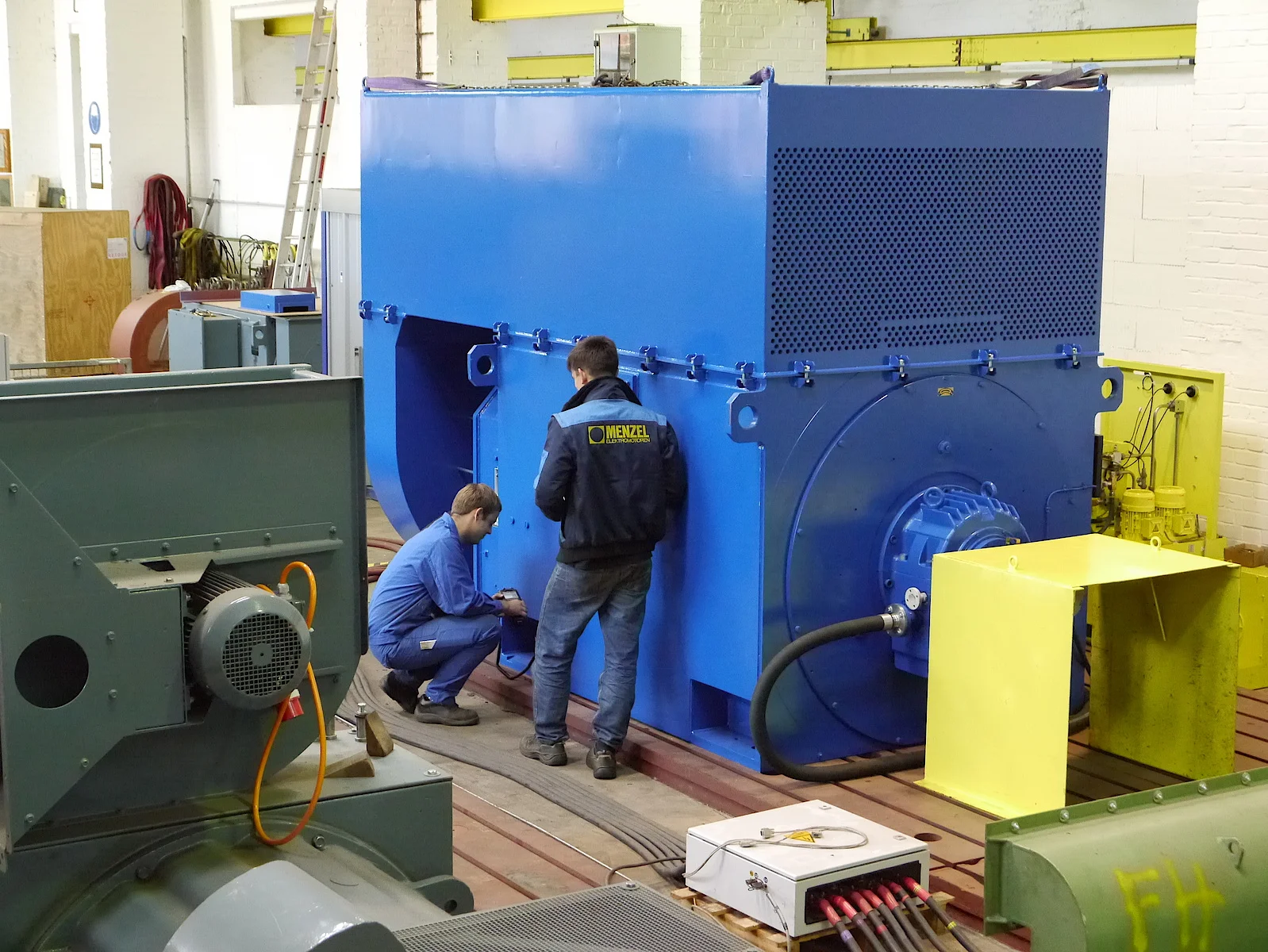

From an African cement plant Menzel received the order to supply a 100% interchangeable motor to the existing main mill drive. In fact the customer bought already another 100% interchangeable Menzel motor; he confided these complex tasks to the Menzel specialists. The motor had to be electrically and mechanically completely interchangeable; also the slide bearings had to be adapted to the existing hydrostatic device of the customer.

Cement plant mill drive - Technical charcateristics:

  • Type: Slip ring motor MEBSSL800-06
  • Rated Power: 4800 kW
  • Voltage: 11000 V
  • Frequency: 50 Hz
  • Poles: 6
  • Rated Speed: 992 min-1
  • Mounting: IM B3
  • Protection: IP 55
  • Cooling: IC 611
  • Weight: 24000 kg
  • Pieces: 1
