5000 VMotor for shredders and crushers

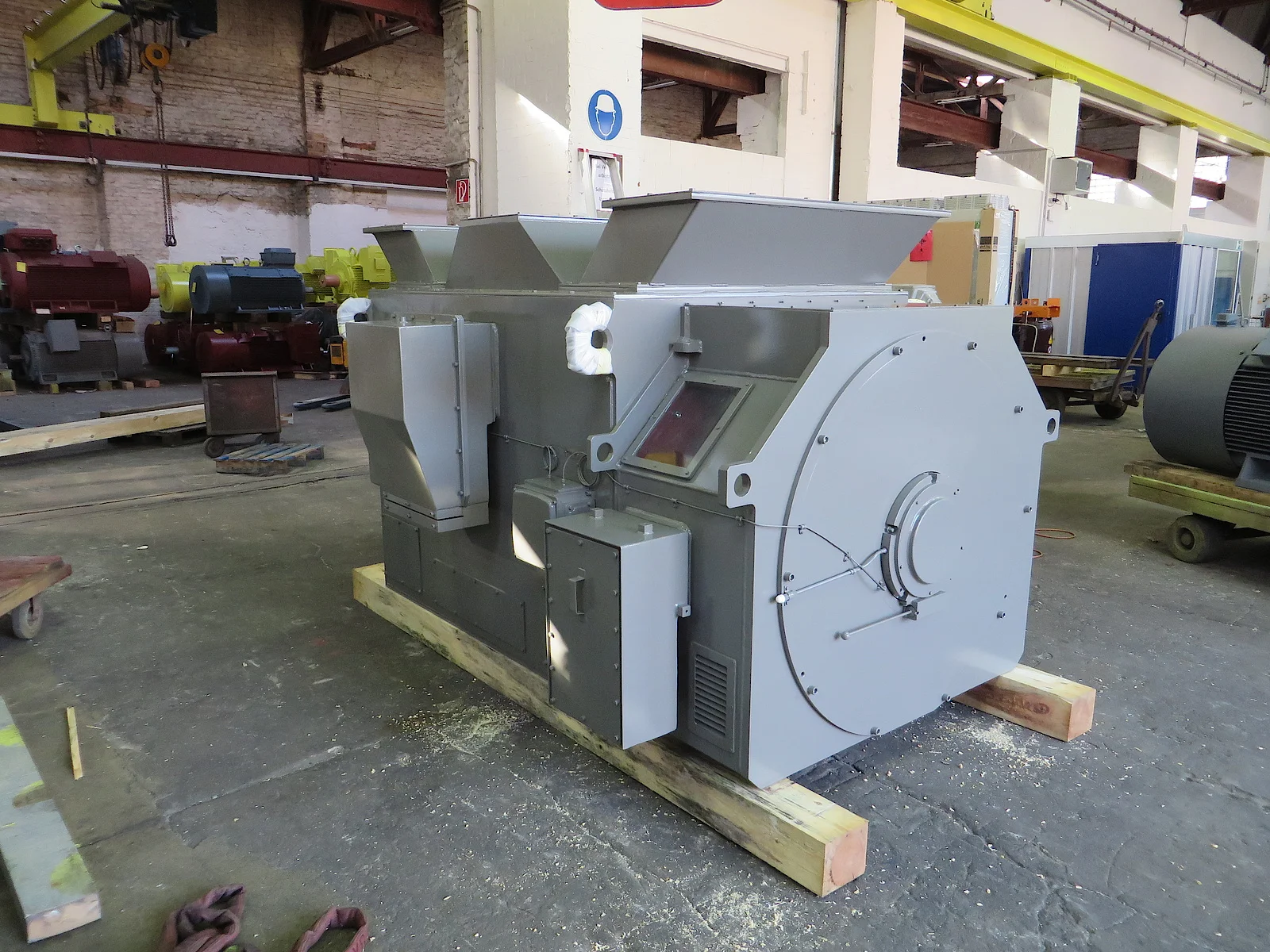

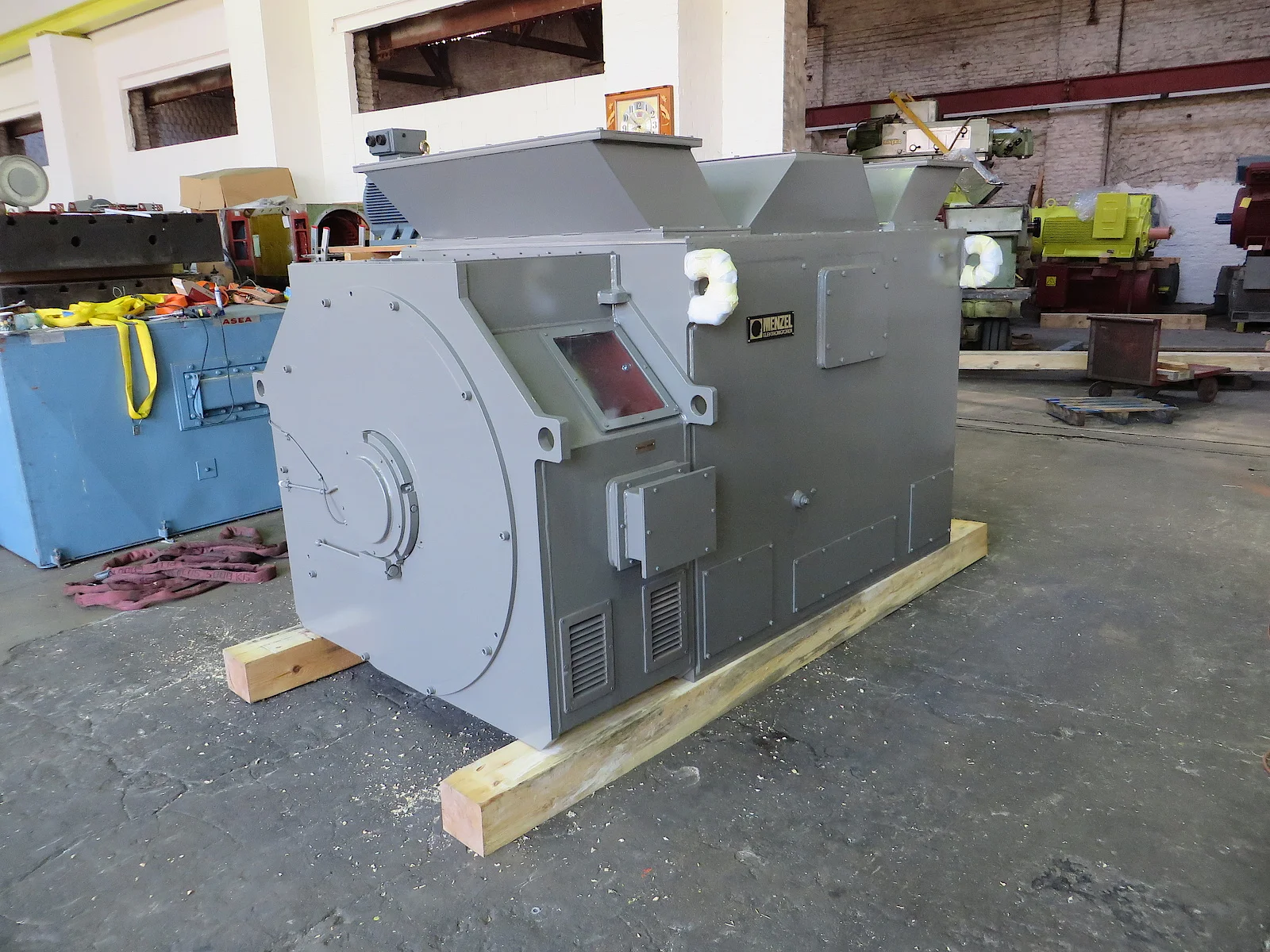

Slipring induction motor for wood shredder

Customer: Paper factory (Spain)

The motor was a replacement for an old motor - which already had been planned to be replaced but which finally failed - and therefore had to coincide electrically and mechanically with the existing plant. In particular the ventilation system of the motor has been modified by Menzel with respect to the conditions at site.

Slipring induction motor - Technical characteristics:

  • Type: MEBSSA630-06
  • Rated Power: 2000 kW
  • Voltage: 5000 V
  • Frequency: 50 Hz
  • Poles: 6
  • Rated Speed: 992 min-1
  • Mounting: IM B3
  • Protection: IP 44R
  • Cooling: IC 37
  • Weight: 11650 kg
  • Pieces: 1
