4160 VPump drives

2 Speed medium voltage motors

Customer: Pumps manufacturer (Germany)

MENZEL obtained from a german pump manufacturer the order to produce 2 pole-changing medium voltage motors. Therefore there must be 2 separate medium-voltage windings in the stator lamination package.
If it is technically possible, we will solve your problem!

Technical characteristics:

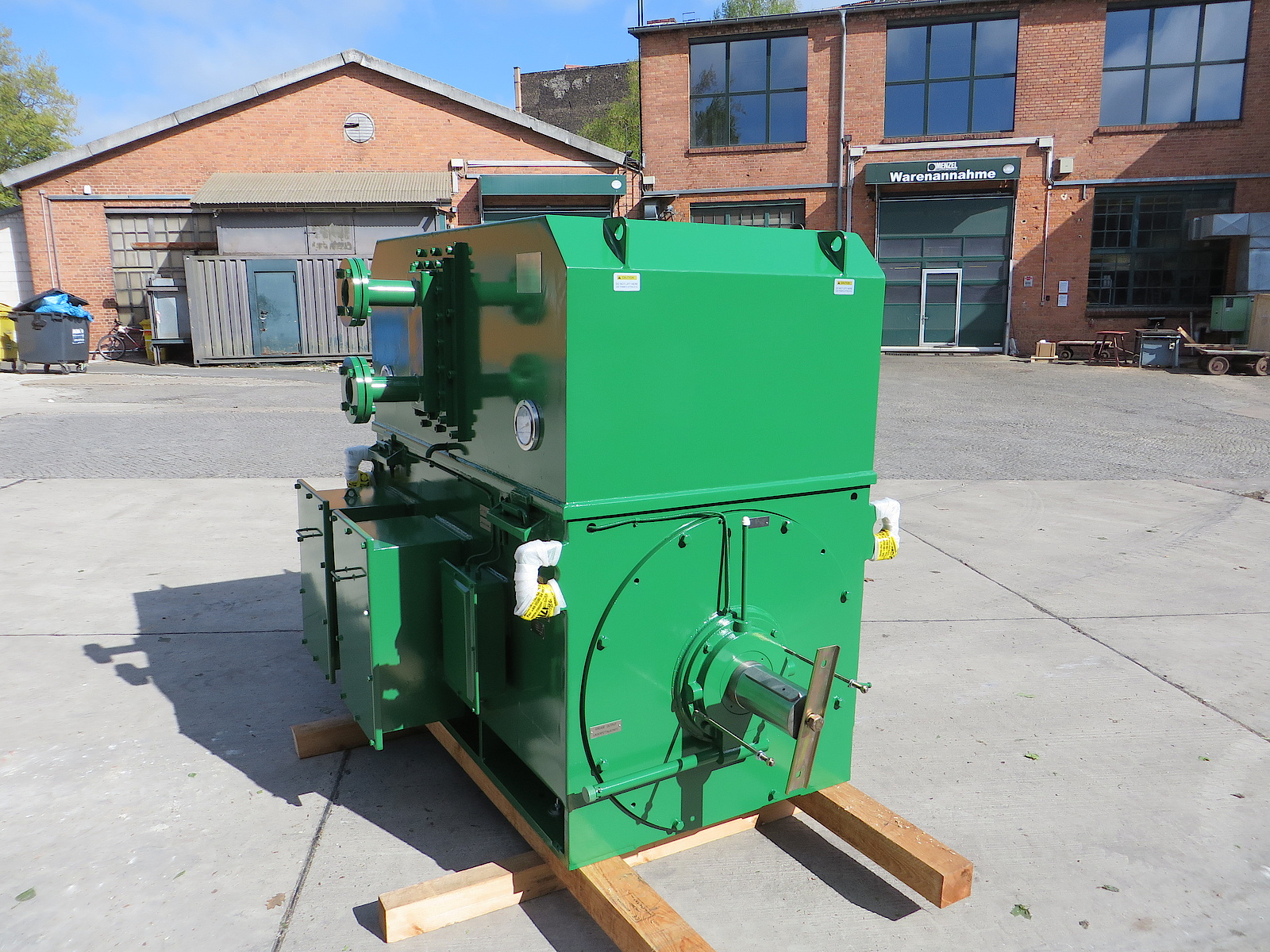

Type: MEBKSW450-06/08
Rated Power: 185/410 kW
Voltage: 4160 V
Frequency: 60 Hz
Poles: 6/8
Rated Speed: 892/1,192 min-1
Mounting: IM B3
Protection: IP 55
Cooling: IC 81W
Weight: 3700 kg
Pieces: 2
