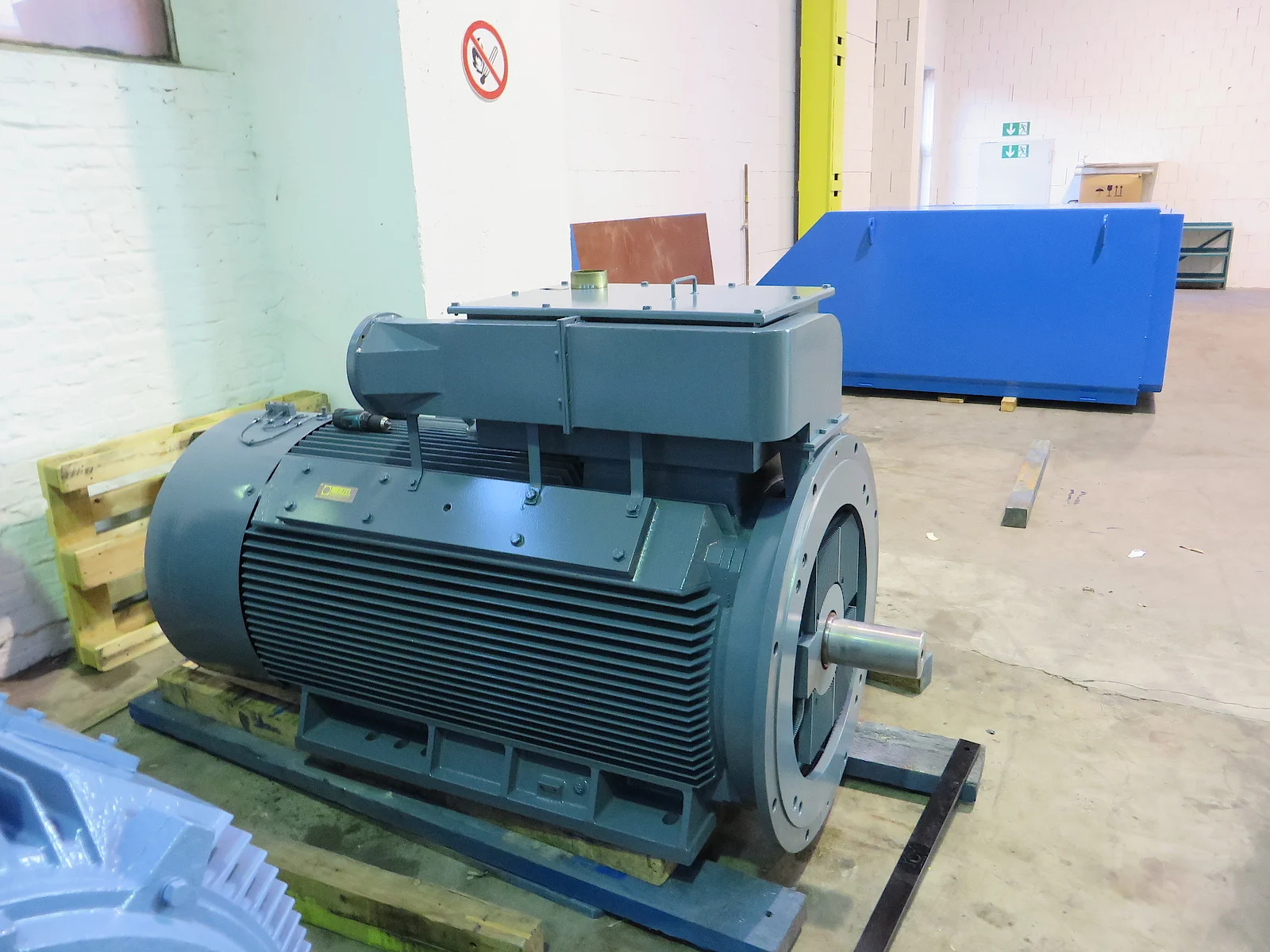

460 VSquirrel Cage (IC 411 + IC 416)Motor for shredders and crushers

Special construction for extreme temperature requirements

MENZEL received the order for the following problematic: three 460 V motors operate a wood-shredder, in mounting V6 (shaft upwards). Due to the temperature at the upper bearings, motors from other manufactures failed regularly.
The solution: To control this problem, on the one hand a special bearing with special grease for 200°C operating temperature were installed, on the other hand, a cooling air tube was used to cool the A-side bearing. Because the motors have been completely installed in the machine, all local lubrication circuit points, and all temperature sensors are made to the fan cover of the B-side end.

Technical charcateristics:

  • Type: MEBKGF400XC-06
  • Rated Power: 664 kW
  • Voltage: 460 V
  • Frequency: 60 Hz
  • Poles: 6
  • Rated Speed: 1193 min-1
  • Mounting: IM V6
  • Protection: IP 55
  • Cooling: IC 411
  • Weight: 3870 kg
  • Pieces: 3
