10000 VSlip ring (IC 81W)Motors for ships, offshore platforms and other marine applications

Customized 10,000V electric motor with RINA certification

Customized motor solution with RINA certification: Tailor-made technology for tight installation conditions

In this case, our customer was faced with the task of replacing a 10,000 V ballast pump motor that had to be installed in a very tight space on one of the largest crane ships in the world. The requirements for the project were:

  • Interchangeability of the motor: The new pump motor had to fit exactly into the existing installation

  • RINA certification: Compliance with strict ship approval guidelines was mandatory

  • Compact design: Due to the limited space available, an exact replica of the previous motor dimensions was necessary

  • Double main terminal box: The flexibility of the connections had to be guaranteed so that the motor could be used with both left and right-hand main terminal box positions

  • Special insulators: The placement and design of the insulators in the main terminal box had to be identical to the old model.

  • Cable entry: The cable entry had to be precisely aligned with the specified position.

Custumized 10000V electric motor with air-water cooler

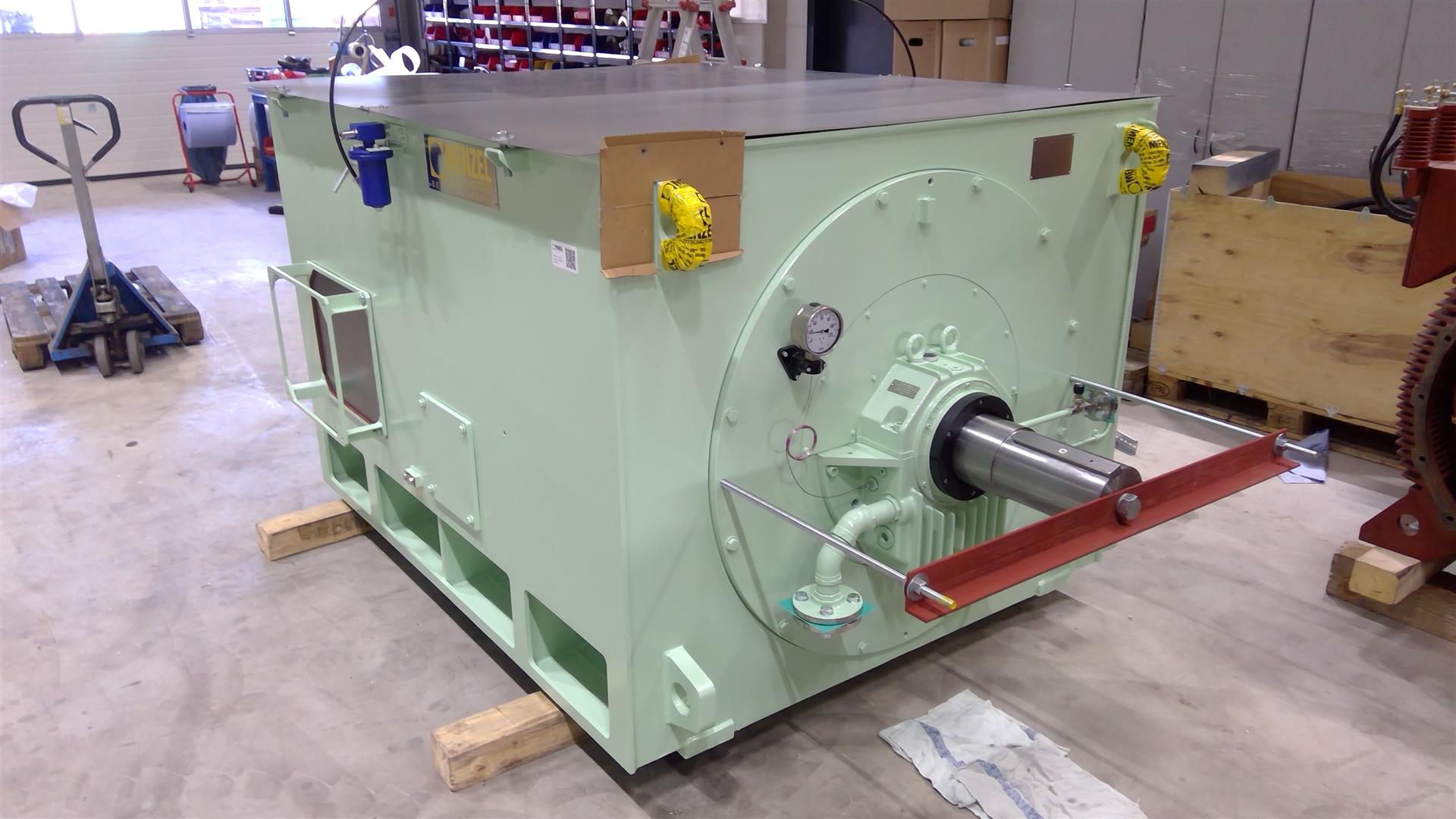

RINA certified high voltage motor for ballast pump

Special technical challenges on the crane ship and our solution

In addition to the compact design of the ballast pump motor, a key aspect was a threaded version of the terminal box adapters. These could not be welded to the housing, as this would have made installation through the existing maintenance opening impossible. Our engineers developed an innovative, threaded adapter solution that optimizes both ease of installation and maintenance access.

In addition, four lifting eyes were integrated on the drive side to enable vertical insertion of the motor through the roof of the ship's installation. RINA guidelines approval certifies the motor's suitability for maritime use and guarantees reliable performance under demanding conditions on the crane ship.

Performance data of the supplied replacement pump motor

  • Asynchronous squirrel cage motor type MEBKSW630-12
  • Standard: IEC/EN 60034-1
  • Rated power: 1,000 kW (corresponds to 1,341 HP)
  • Rated voltage: 10,000 V
  • Frequency: 60 Hz
  • Number of poles: 12 poles
  • Rated speed: 590 rpm
  • Design: IM 1001 (IM B3)
  • Protection class: IP55
  • Cooling type: IC 81W (Totally Enclosed Water-to-Air Cooled)
  • Weight: 11,000 kg

Your partner for for trouble-free operation on the high seas!

Rely on certified quality! With our many years of experience in the development and manufacture of special large motors, we offer innovative solutions for individual challenges.

Contact us with your specific requirements

We will develop the optimal solution for your project!


MENZEL: Manufacturer of customized Marine and Ship Motors

MENZEL is a global manufacturer of large electric motors. We offer customized motor solutions that are precisely tailored to the respective application. Our highly skilled team can professionally adapt the size, power, and cooling of the motors. We have been doing this for almost100 years

In the marine industry and on ships, MENZEL electric motors are used for a wide variety of applications: as main and auxiliary drives (propulsion motors), to drive bow thrusters or side thrusters, for generators, crane systems, compressors, or pumps.

Use and requirements for the electric drive of a ballast pump on a crane ship

A ballast pump on a crane shipis used to regulate the ballast water system. The ballast water is used to control the stability and trim of the ship - especially during heavy lifting operations with the crane. By selectively filling or emptying the ballast tanks with the help of the pumps, the ship can be balanced and kept stable to enable safe working conditions.

What criteria must the electric drive of a ballast pump on a crane ship meet? It must:

  • be designed for continuous operation (24/7)
  • have a sufficiently high rated power to operate the pump reliably even under high loads
  • meet the requirements of RINA, DNV, or other classification societies
  • have protection classes such as IP55 or higher to be protected against water and moisture
  • withstand extreme temperatures, vibrations, and corrosion

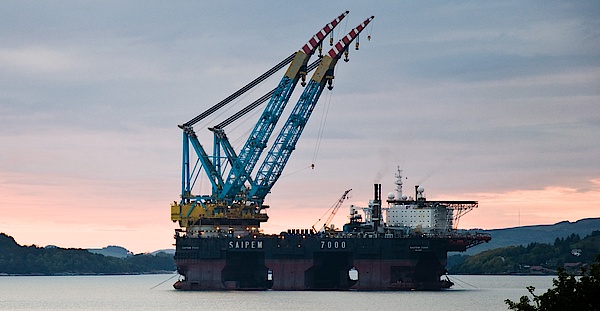

About the third most powerful floating crane and one of the largest working vessels in the world

The crane vessel supplied by MENZEL is designed for laying pipelines in deep water and for heavy lifting work in offshore construction and energy projects. It is self-propelled and has a semi-submersible body.

The vessel has an advanced ballast system with four 6,000 m³/h ballast pumps, 40 ballast tanks, and 14 fast ballast tanks, which ensure efficient stability adjustment during operation.

Marine certification and RINA approval: safety and quality for marine motors

Marine certification such as RINA plays a key role in ensuring the safety and efficiency of marine motors in international maritime transport. It ensures that electric motors meet the technical and safety requirements of a recognized classification society.

RINA approval refers to the certification and classification of ships and their components by theRegistro Italiano Navale (RINA). RINA is an internationally recognized classification society based in Genoa, Italy. RINA approval certifies that our motors comply with international standards, are safely designed, and can be operated without risk.

Advantages of RINA-certified marine motors

  • Safety: Prevents accidents through tested design and operational safety.

  • Environmental protection: Minimizes emissions and ecological risks.

  • Operational efficiency and reliability: Optimizes motor performance and service life.

By adhering to strict RINA testing criteria, our buyers and operators of large ships benefit from the highest level of safety, reliability, and efficiency of our electric engines.


MENZEL Motors testing service in our in-house load test facility

MENZEL Elektromotoren operates its own load testing facility at its Hennigsdorf site near Berlin, Germany. In our in-house test field, we offer comprehensive testing services for routine, type, and system tests - also for external clients and brands.

Classification societies for marine inspections that can be carried out at our test facility include:

  • DIN EN 60034

  • Measurements according to energy efficiency classifications IE3, IE4, and IE5

  • Bureau Veritas - BV

  • Lloyd's Register - LR

  • American Bureau of Shipping - ABS

  • Det Norske Veritas - DNV

  • Registro Italiano Navale - RINA

Request a test now

Our test field experts are ready to support your project with high-performance testing for any kind of motor. Contact us to discuss your requirements, scheduling options, and special testing setups.
